MCodeAir™ - CNC Solenoid Kit (2 Solenoids)
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Description

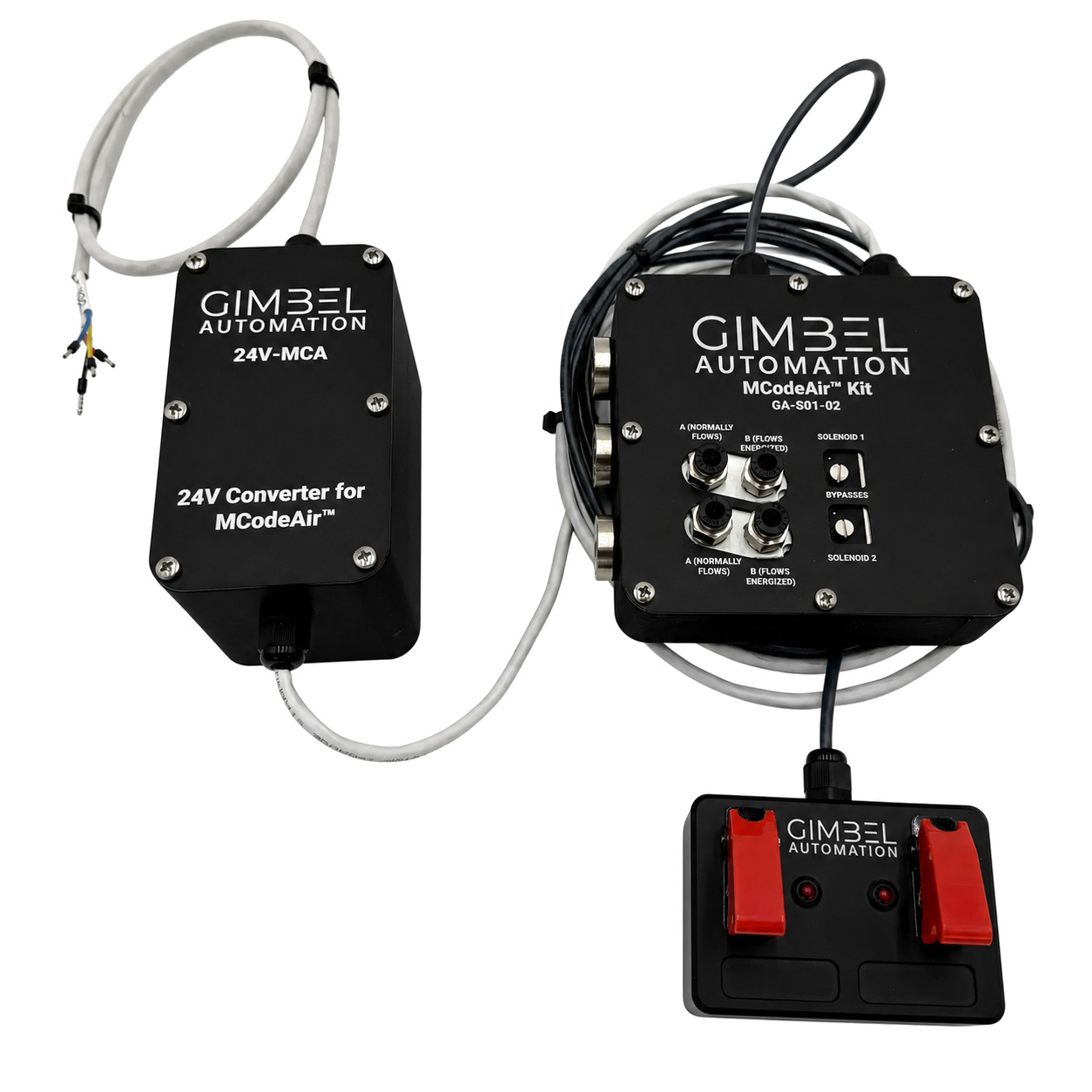

The Gimbel Automation Instant Solenoid Kit provides you instant M-code Integration with Your CNC Machine in just a few minutes. This is the easiest way to implement Gimbel’s line of Spindle Grippers or Air Vises.
Just plug in the two connectors into your machine board and plug the power supply into the wall. Then, you two have fully programmable air outlets that are M-Code Activated. Each set of outlets is Two-Way but can easily be configured as On/Off instead.
Be sure to buy the optional Manual Pendant to have manual solenoid control, too!
This kit can also work standalone with the Manual Pendant Option or can be integrated with either Fanuc/Brother machines or a variety of Robots/Cobots using our 24V Adapter Kit. Haas, Doosan, and machines with relays onboard work out-of-the-box with the Instant Solenoid Kit.
Technical Specs & Downloads
Downloads
Technical Specs
| Technical Specs | |
|---|---|
| Number of Solenoids | 2 |
| Channels Per Solenoid | 2 |
| Mounting | Magnetic |
| Power Requirements | 120V AC |
These are excellent for quick and easy installation of our Air Vises, Spindle Grippers, or third-party pallet systems (such as those from Schunk, Erowa, or Pierson Workholding).
