Standard TumbleBlast™ - Automatic Tumble Basket for Sand & Bead-Blasting
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Description

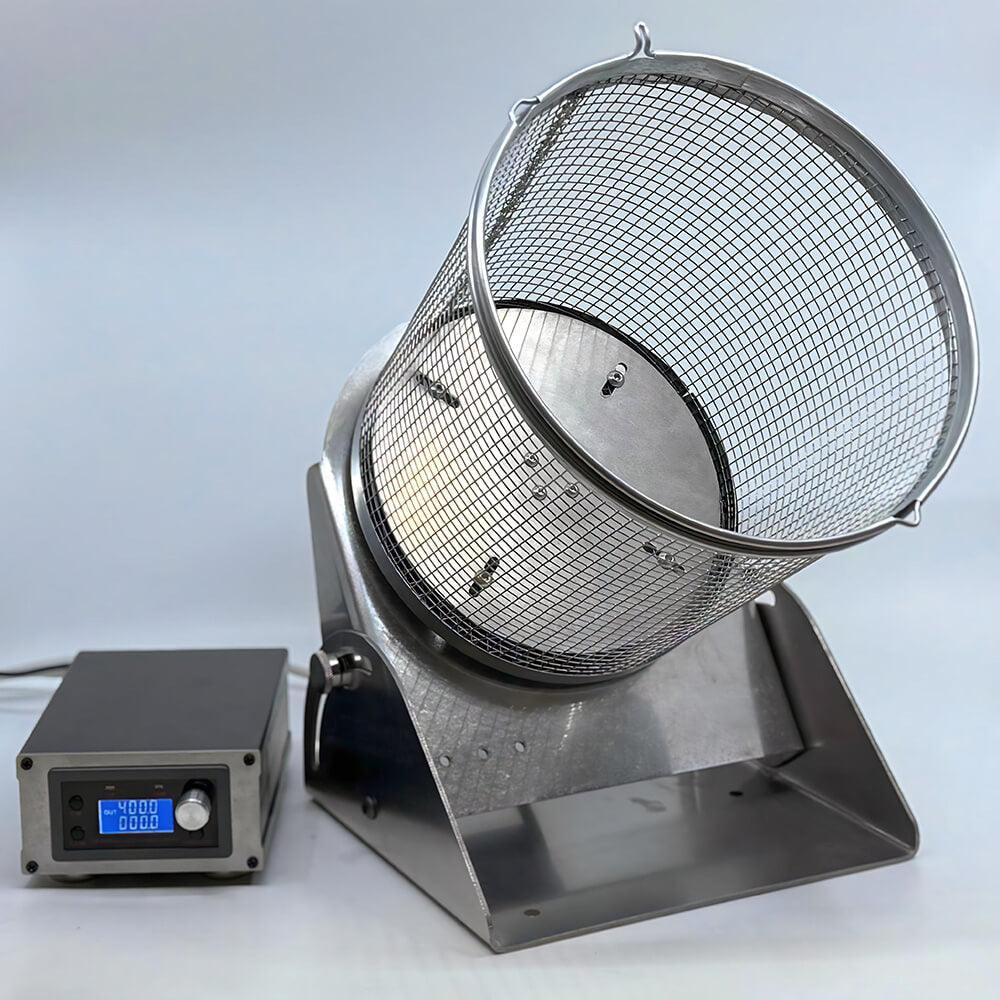

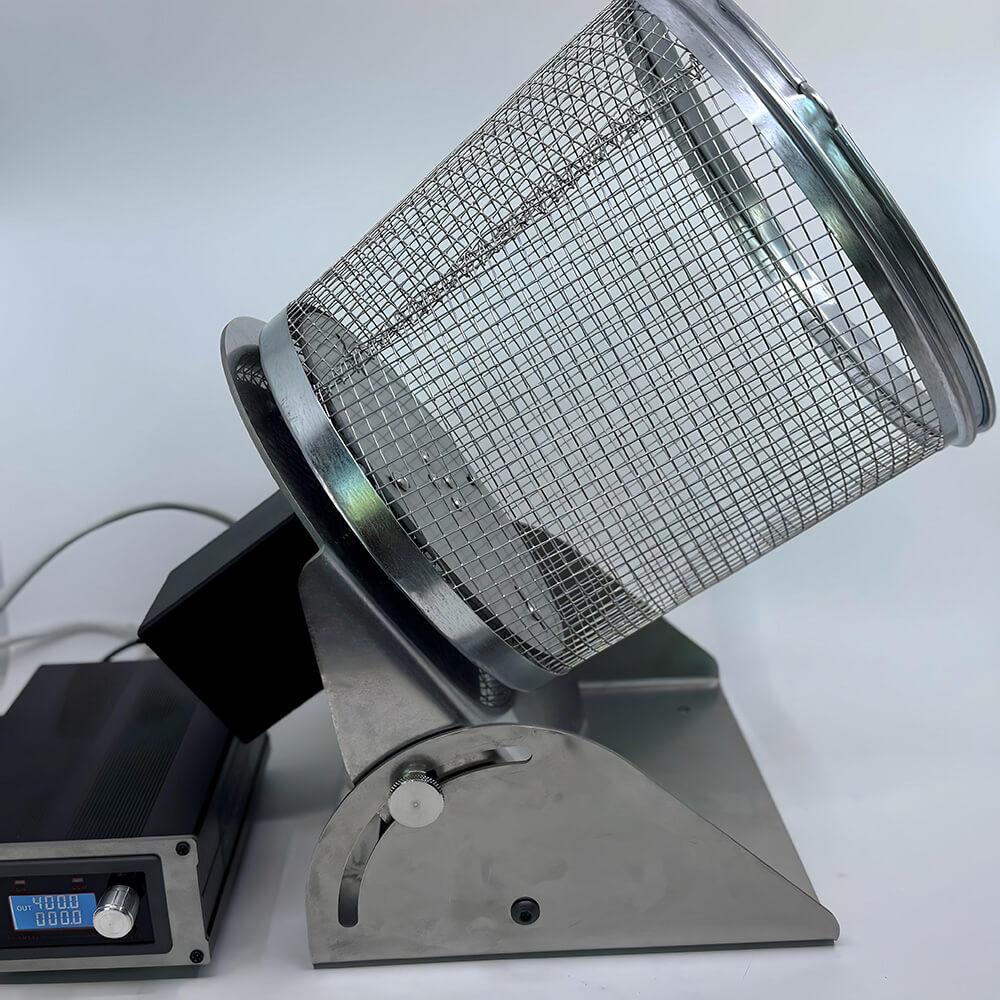

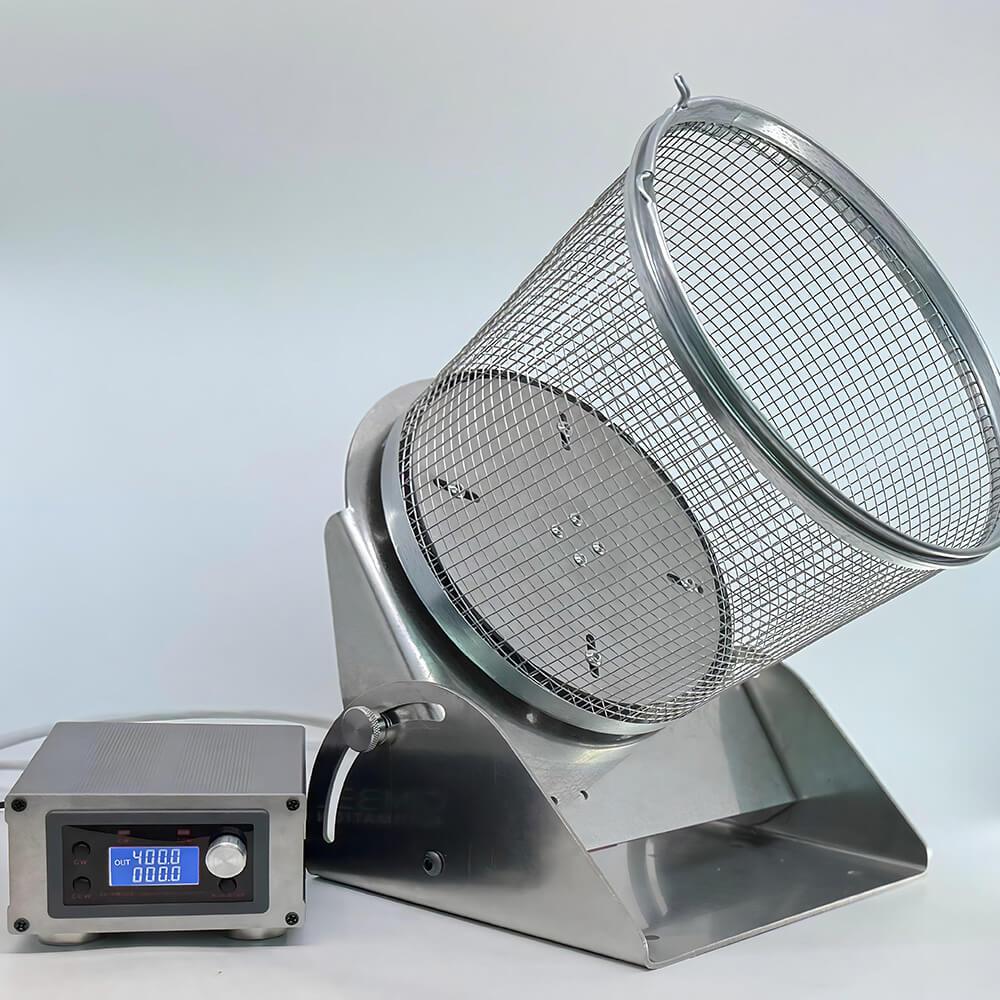

Gimbel’s TumbleBlast Automatic Tumble Baskets make your sand or bead-blasting of small parts quick and automatic. Rather than manually blasting small and difficult-to-hold components, just put the entire TumbleBlast unit into your current blasting cabinet (needing zero modifications), put the parts into the TumbleBlast, and start the automatic blasting process. The TumbleBlast’s highly geared precision Stepper Motor rotates the basket at any speed set by the included digital controller. The angle of the basket itself is fully-adjustable. The blaster itself is typically turned on with a manual clamp on the foot pedal or a timed solenoid controller.

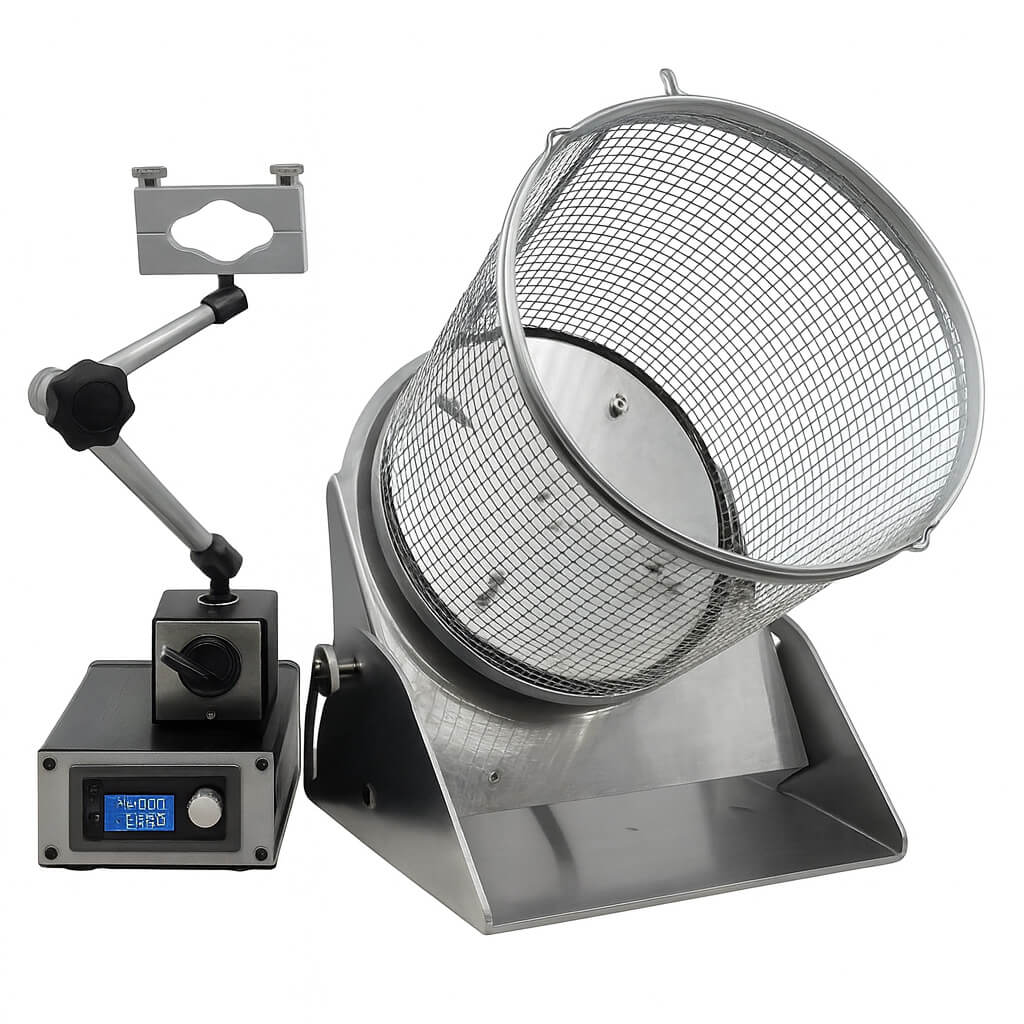

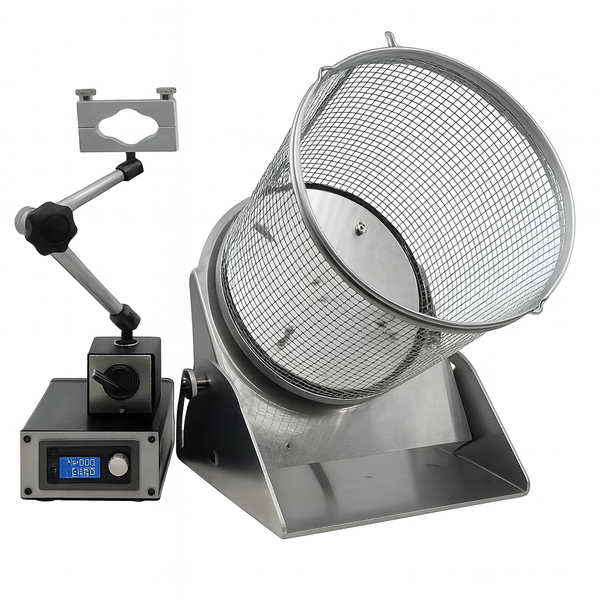

To hold the blasting gun, we also offer an articulated Magnetic Mount with a Universal blasting gun grip that can hold virtually every blasting gun on the market. The articulated arm and magnetic mount make it effortless to position the blasting gun for ideal distribution and trouble-free finishing.
The Standard TumbleBlast Automatic Tumble Basket is designed primarily for bead-blasting and light-duty sandblasting. Its smaller basket allows it to fit into virtually every free-standing blast cabinet and some (but not all) tabletop cabinets. For more industrial applications, we offer the Giant TumbleBlast Automatic Tumble Basket that features a much larger and thicker all-stainless steel basket, a much more powerful motor, and a larger overall processing capacity. Replacement baskets and parts are available for both models.
The TumbleBlast product line is ideal for automatically post-processing SLS prints, automatic blasting of small components, automated deburring, and automated bead-blast finishing operations. For the best results, parts being processed should not exceed one-half pound.
Technical Specs & Downloads
Downloads
Technical Specs
| Technical Specs | |
|---|---|
|

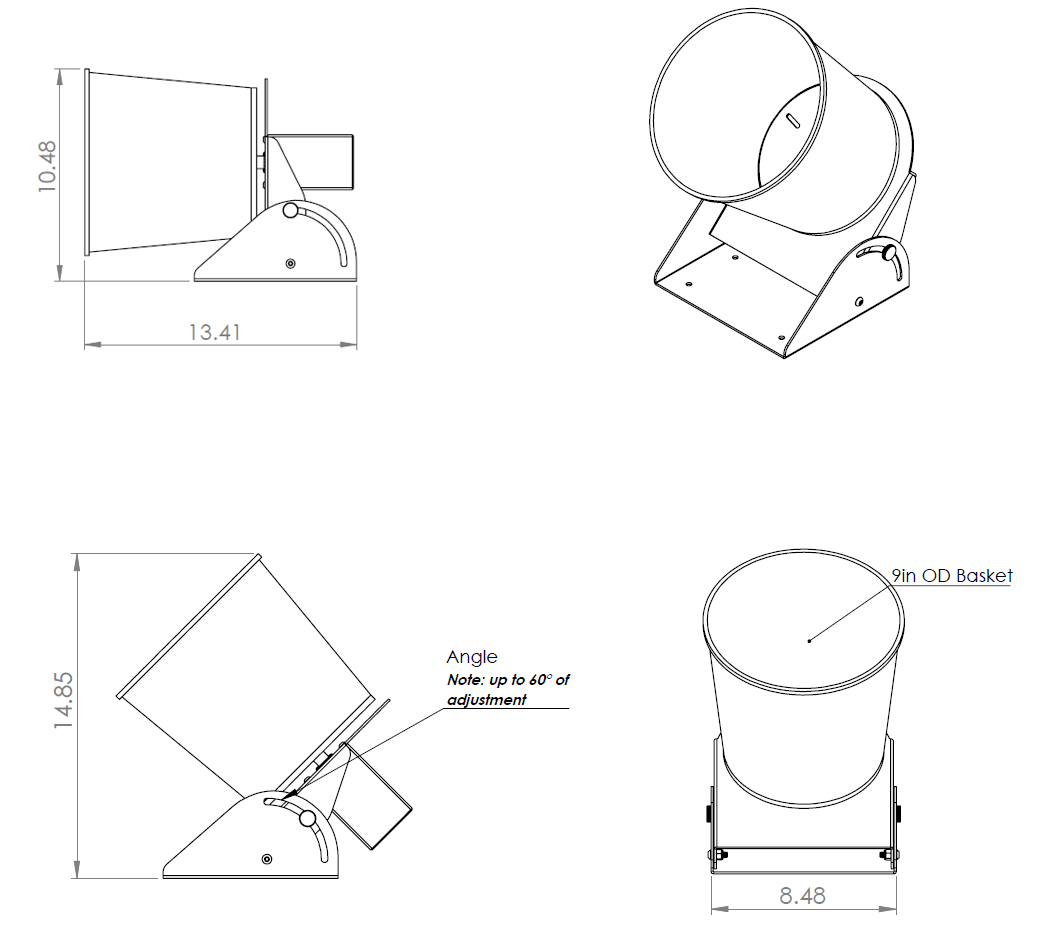

Basket Size |
9" Diameter by 8.75" Tall |
| Construction | 0.100" 304 Stainless Steel |
| Motor Torque | 80kg-cm |
| Motor RPM Range | Fully Adjustable 0-16RPM |
FAQs
An Auto-Tumble Basket, also known as an Automatic Tumble Basket, Automated Sand-blasting Parts Tumbler, or Automated Bead-blasting Part Basket is the single easiest way to automate your Sand and Bead-Blasting Needs. Instead of standing at your Sand or Beadblaster for hours every day, simply put parts in the basket, turn it on, turn the blaster unit on, and walk away. The parts will automatically be rotated allowing all surfaces to be fully finished. Then turn the Auto-Tumble Basket off, turn off your blaster unit, and collect your parts!
Our Auto-Tumble Baskets can absolutely be used for automatic processing of your SLS 3D Printed Parts — in face, we invented the Automatic Tumble Basket for this exact application. We make thousands and thousand of SLS 3D Printed Gripper Fingers for our CNC Spindle Grippers, and use our Automatic Tumble Basket to automatically process them.
The Gimbel Automation Auto-Tumble Baskets are the only units on the market that can simply be placed inside of the blasting cabinet when needed and removed when not needed. Every other option on the market not only costs two-to-ten times more, but are permanent to your cabinet.
Our Auto-Tumble Baskets are in production use in hundreds of wet-blast cabinets and thousands of traditional cabinets across the United States. In both the standard and giant Auto-Tumble Basket units, there is a large semi-sealed Stepper motor that is further enclosed in a complete enclosure. The motor is located strategically on the back side of the unit behind multiple metal plates, making water ingress very unlikely. We’ve never had a unit fail due to wet-blast or vapor-honing cabinet blasting use.
The typical limitation is not part weight, but part finish. When parts become large and heavy enough, they can bang into each other when rotating in the Tumble Basket. We typically recommend filling the Auto-Tumble Baskets be filled with no more than 20% total basket volume. For the Standard Auto-Tumble Basket, we recommend no more than 10 pounds of parts. For the Giant Auto-Tumble Basket, we recommend no more than 25 pounds of parts.
The Standard Auto-Tumble Basket fits in the vast majority of Sandblasting and Beadblasting cabinets on the market. The Giant Auto-Tumble Basket is a much more industrial product that only fits into large, free-standing cabinets.
