Gimbel Automation

Rotary Bypass Universal CNC Spindle Gripper

Sale price$1,949.00 Regular price$2,499.00
Save $550.00
Style:CAT40 Haas Compatible
Rotary 75mm Air Vise Rotary 100mm Air Vise
Quantity:
REQUEST PRICE
Downloads

Product Description

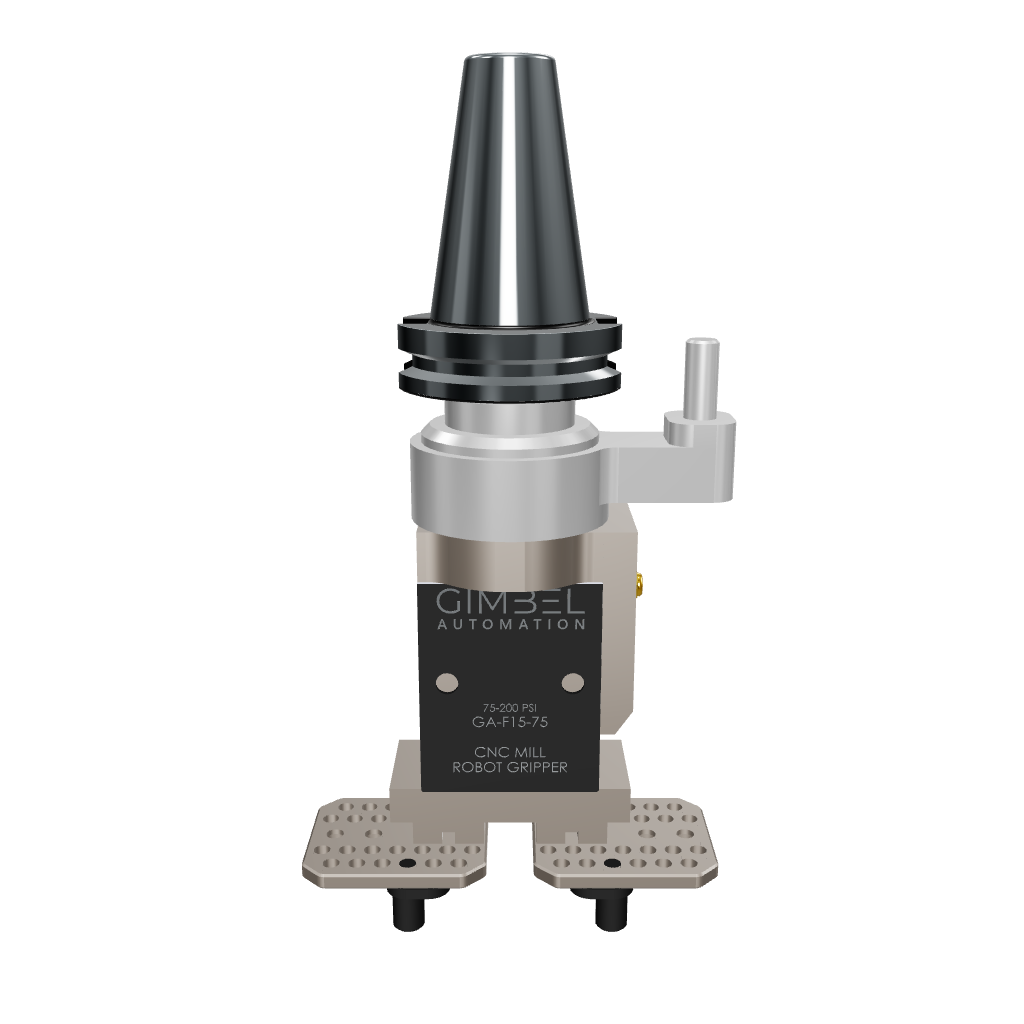

Our patent-pending Rotary-Bypass Universal CNC CNC Spindle Gripper is the most versatile and powerful gripper on the market. By combining our Through Air Gripper with a custom-machined integrated Rotary Union, this gripper combines all the benefits of a Through Air Gripper with the ease-of-integration of a Bypass-Air Gripper. This is the only gripper on the market that can M19 Spindle Orient (rotate) while using an external air source in the form of our Bypass Block.

Available in CAT40 and BT30 Holder variants, with other variants available upon request.



Rotary Bypass Universal CNC Spindle Gripper

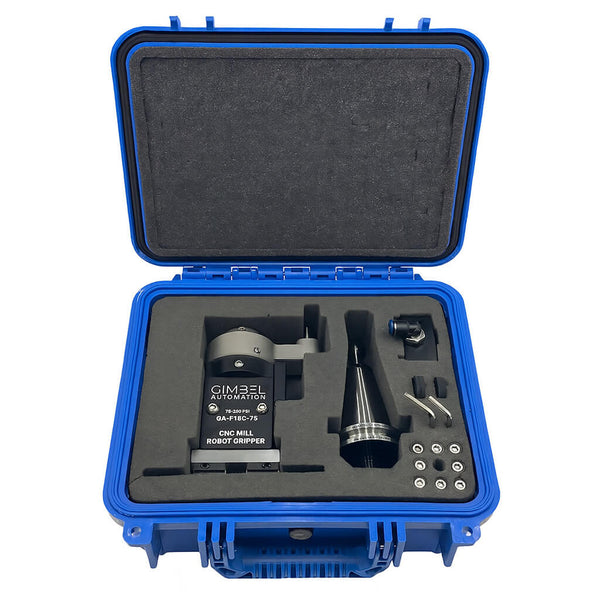

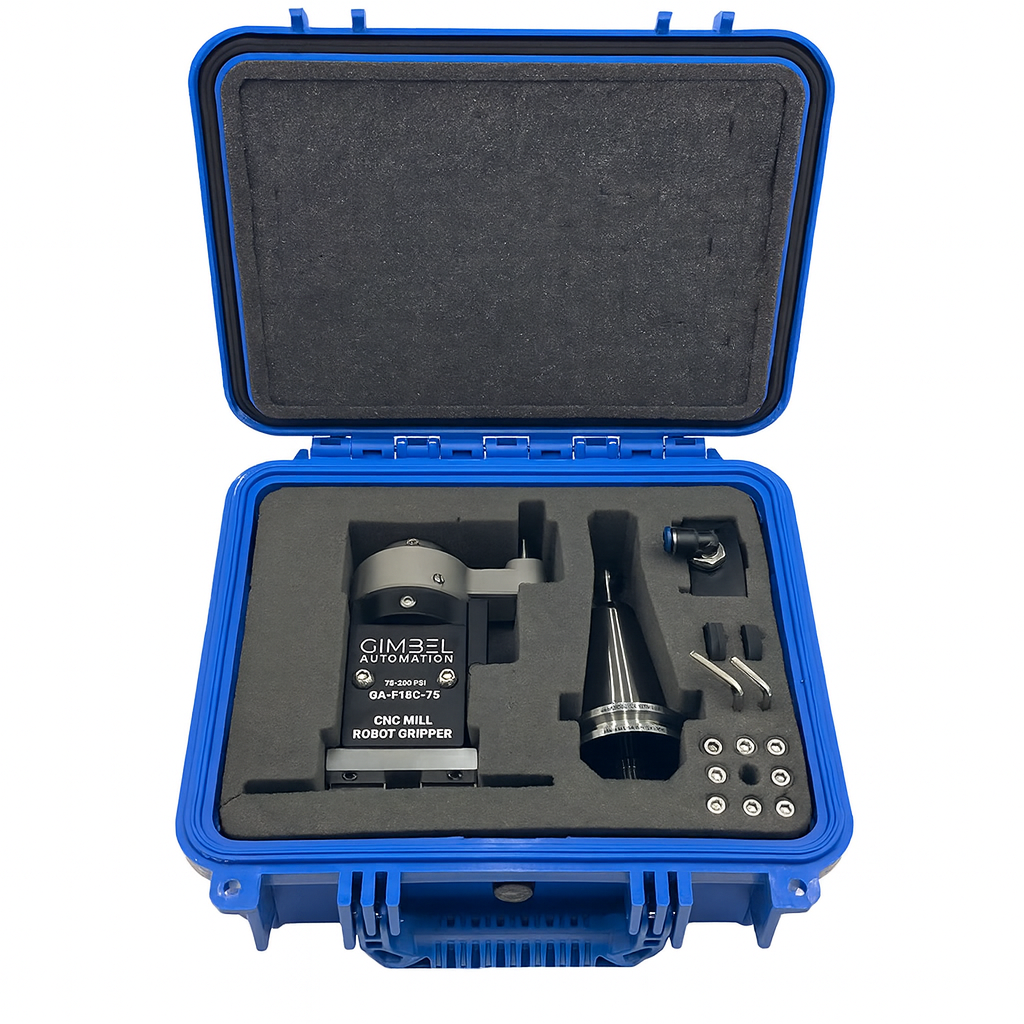

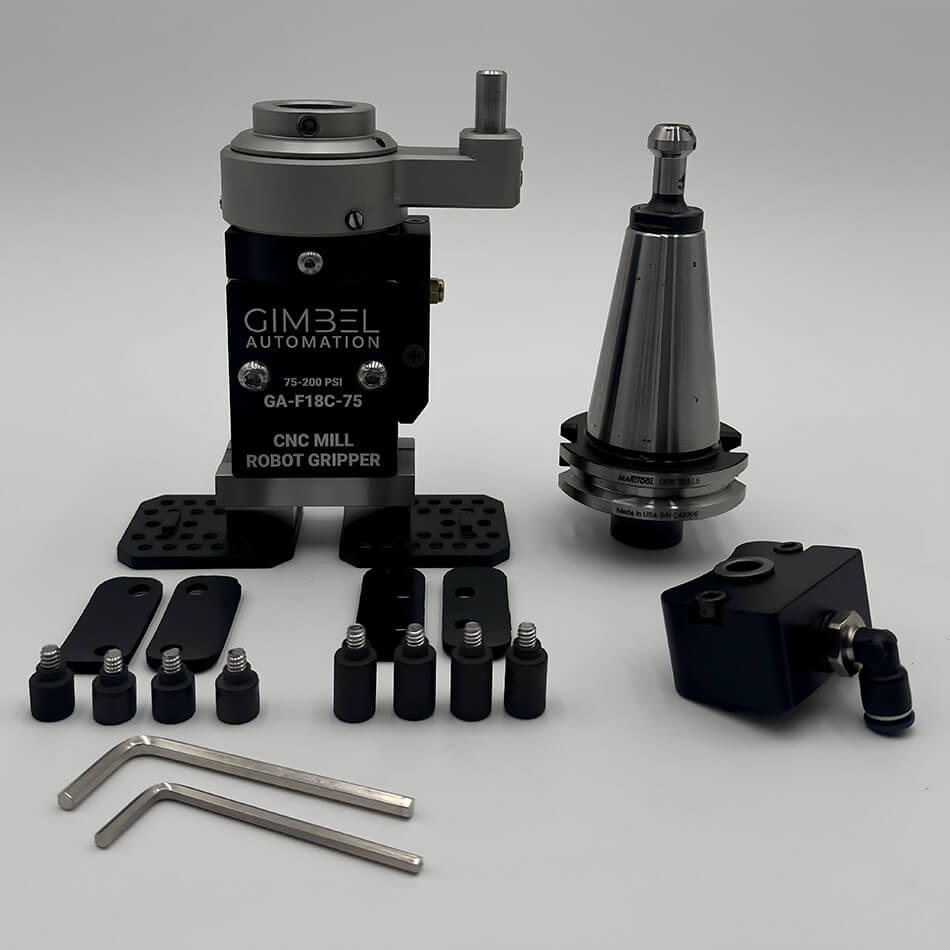

Complete kit includes:
  • 1x Rotary Bypass Gripper
  • 1x Bypass Block
  • 2x Finger Mounting Plates
  • 4x Small Round Fingers
  • 4x Long Round Fingers
  • 4x Rubber Compression Pads
  • 1x Blue Storage Hard-Case
  • 1x Selected CAT40/BT30 Holder

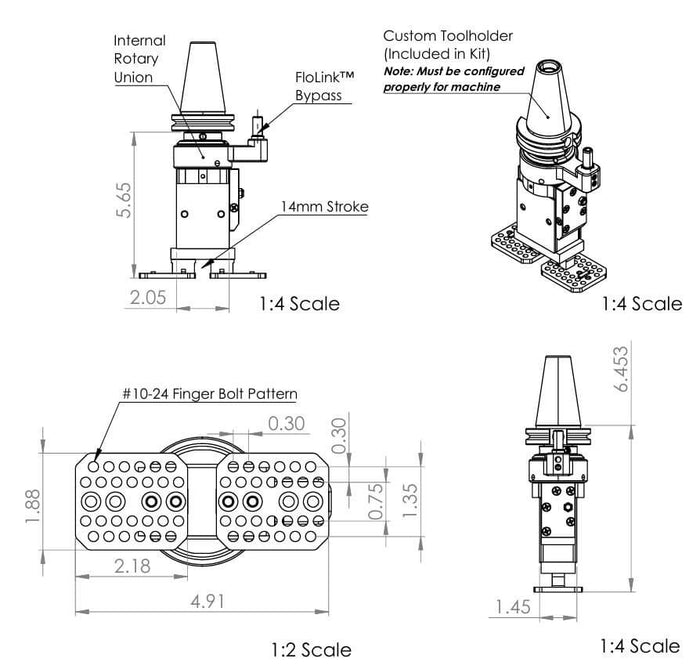

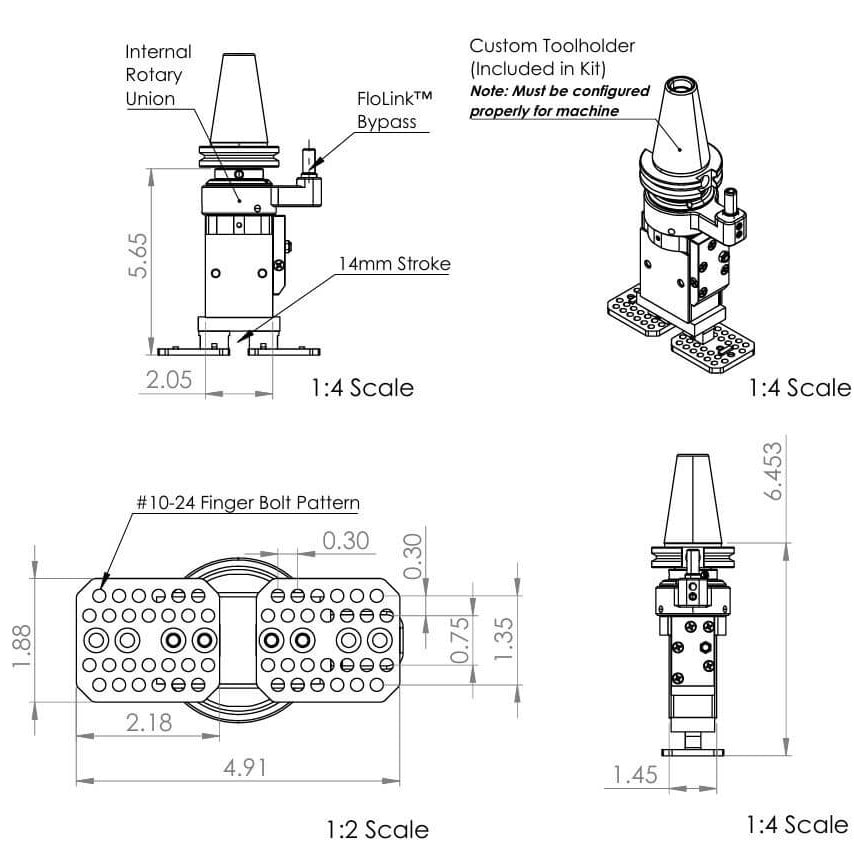

Technical Specs

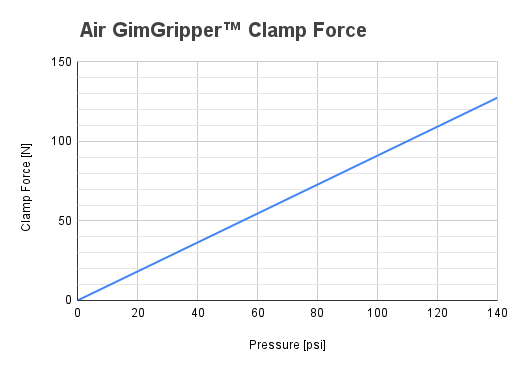

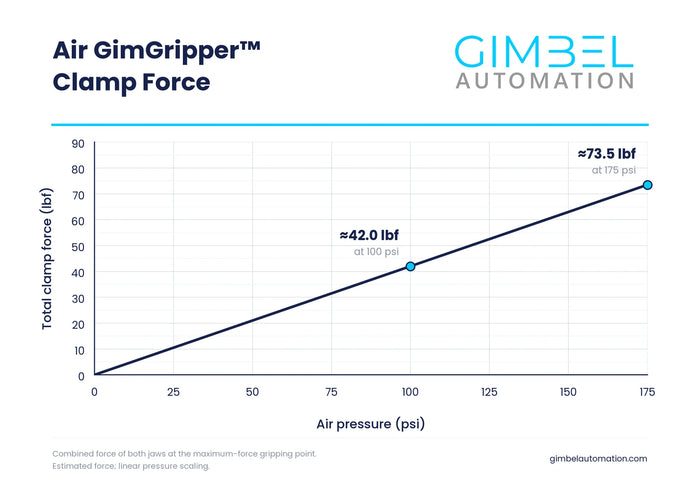

Pressure Range 0-140 psi
Repeatability +/- 0.001”
Part Size Grip Range 0” – 4.125”
Recommended Part Weight <10 lbs

This gripper works out of the box with virtually any CNC Mill with a tool-changer. We sell several adapters for our Bypass Air Blocks, and can custom make one for specialized or niche machines.

FAQs

CNC Spindle Grippers, also known as CNC Spindle Grabbers or CNC Part Tending Grippers, are the most cost-effective and easiest-to-implement form of CNC Machine Tending Automation. Unlike many other forms of Machine Tending Automation, CNC Spindle Grippers are the only form of CNC Machine Tending Automation that uses your CNC Machine itself to accomplish the movement of your components to be machined into and out of the workholding.

CNC Spindle Grippers are there to free up machine operators and let the machine tend itself automatically. Instead of eating up an operator’s entire day loading and unloading parts, the CNC Machine itself is able to load and unloads its own components, allowing operators to focus on process improvements, QC, and programming. While no form of CNC Machine Tending Automation eliminates the need for skilled operators, CNC Spindle Grippers often allow an operator to monitor and maintain five to six machines instead of only one.

Programming your CNC Spindle Gripper for Automated Machine Tending is surprisingly easy. Check out our Programming Article for complete instructions. Since this was the biggest hurdle for our customers, we created a Program Generator to allow you to generate programs fully-automatically for single operation machine tending automation. For two-operation automation, such as what you might use with our Two-Op Automation Pallet, we provide you with a free comprehensive template, which makes programming parts to run fully automatically as simple as programming a single two-operation part.

We make a variety of CNC Spindle Grippers including:

Our 3/4" Through-Spindle Coolant and 3/4" Through-Spindle Air models can use any type of tool-holder. The 3/4" TSA Model can use any holder out-of-the-box. The 3/4" TSC Model can use any holder, but may require drilling a hole into the side of the holder to allow coolant depressurization.

Our Patent-Pending Rotary Bypass models are the only solution on the market that allow you to use Spindle Grippers for Machine Tending on a machine that lacks Through Spindle Air or Through Spindle Coolant.

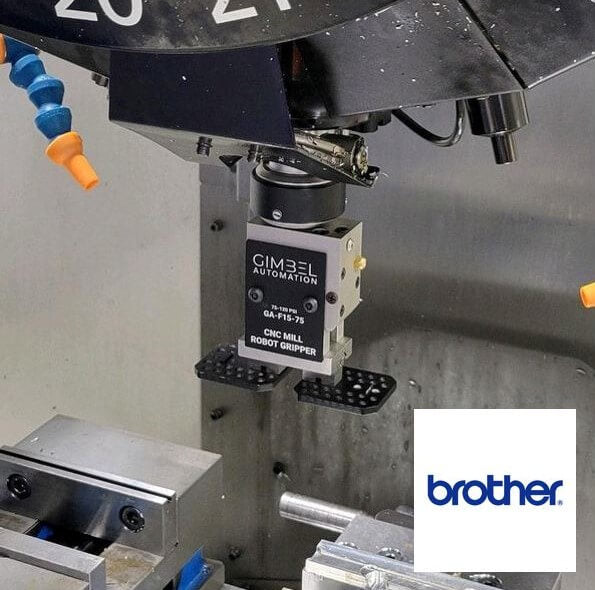

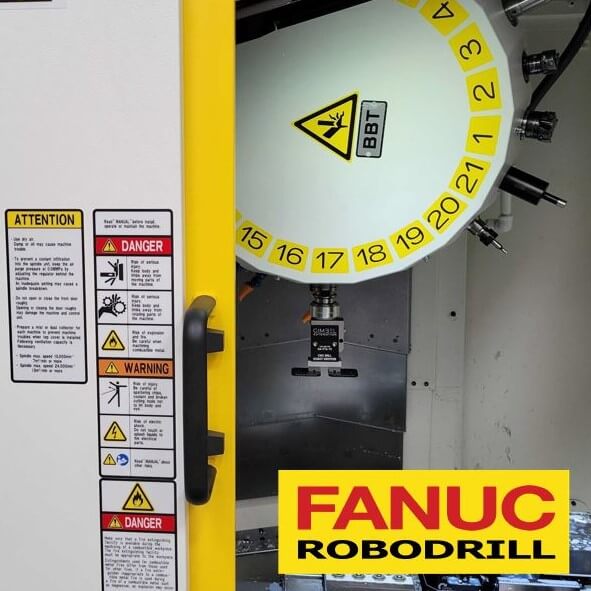

Our Grippers are strategically size to work in almost any tool-changer without taking up more than a single tool-slot. We’ve tested hundreds of machines from Haas, Doosan/DN, Brother, Fanuc, DMG Mori, Hermle, Okuma, and many others. For the vast majority of Side-Mount and Umbrella tool-changers, these Grippers are tested and verified. For odd-ball tool-changers such as side-mount chain-style ATC’s, contact us to confirm compatibility.

Yes, you can do this with our Rotary Bypass Grippers, our Through-Spindle Air Grippers, or our Through-Spindle Coolant Models.

Gripper-loaded part weight essentially unlimited (to a point) depending on the finger design. We’ve had customers 3D print or machine custom fingers that hook under the part for large part loads.

For most applications (with the standard included gripper fingers), we generally recommend keeping part weight below 5 lbs for gripper part handling.

We’ve had customers move as much as 10lbs with the default gripper fingers, but you need to use 150-200psi air to make sure things are very tightly held. We’ve had customers move as much as 45 pounds using custom gripper fingers that wrap around the bottom of components.
