CoolantClear2™ Rotary CNC Viewing Port Window
CoolantClear2™ Rotary CNC Viewing Port Window
CoolantClear2™ Rotary CNC Viewing Port Window
CoolantClear2™ Rotary CNC Viewing Port Window
CoolantClear™ rotary spin window for CNC machines - self-cleaning viewing port, front view
CoolantClear2™ Rotary CNC Viewing Port Window

Gimbel Automation

CoolantClear2™ Rotary CNC Viewing Port Window

$1,579.00 $2,379.00
Save $800.00
Standard:CoolantClear Only
Bore Size Tutorial
Recommended Add-Ons
SpindleStorm™ CNC Chip Fan (+$149.00)
CoolantClear2™ Replacement Glass Kit (+$349.00)
Quantity:
High Demand: Order Today, Ships by Aug 28

✓ In Stock

✓ Ships in 1-3 Business Days

✓ Ships in 10-14 Days

✓ US-Based Support

✓ In Stock

✓ Ships in 1-3 Business Days

✓ Ships in 10-14 Days

✓ US-Based Support

REQUEST PRICE

  • Need Turnkey CNC Automation?

    For Turnkeys and Custom Applications, we can help!

  • Book a Turnkey Demo

See in Action

Why CoolantClear™

Every rotary viewing window compared, so you can decide in 30 seconds

Best Value for Retrofits

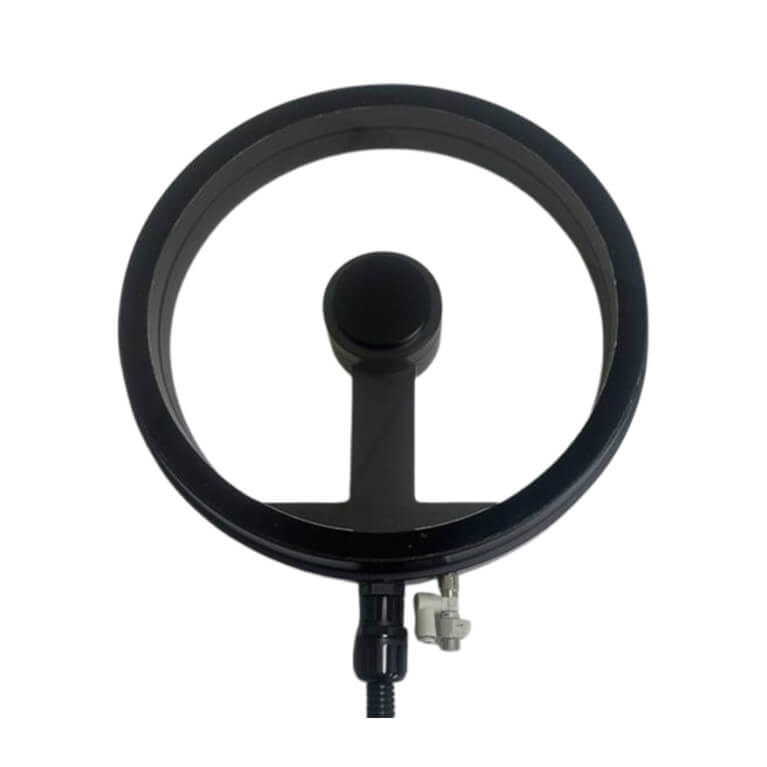

CoolantClear™
Job shops & production, most CNC machines

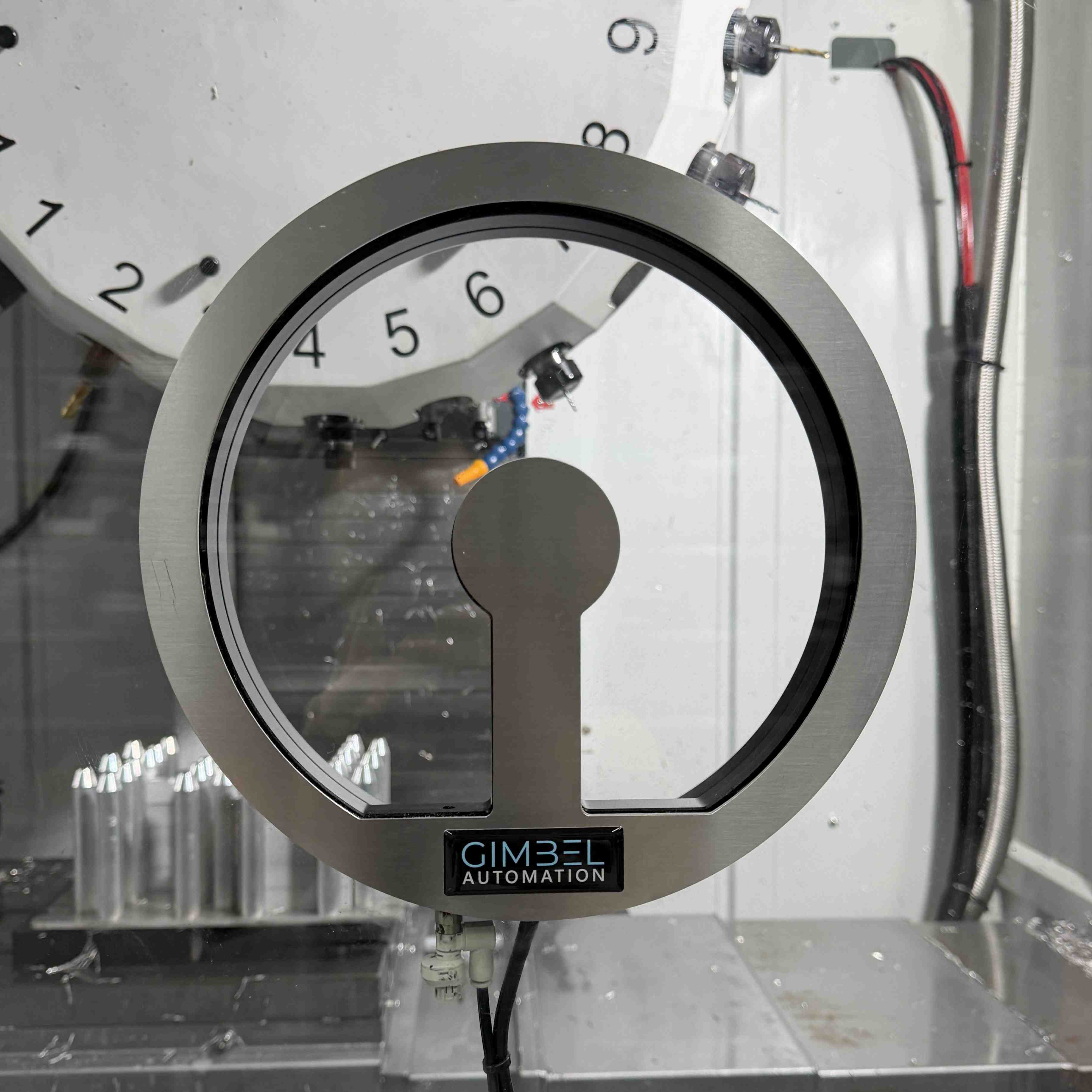

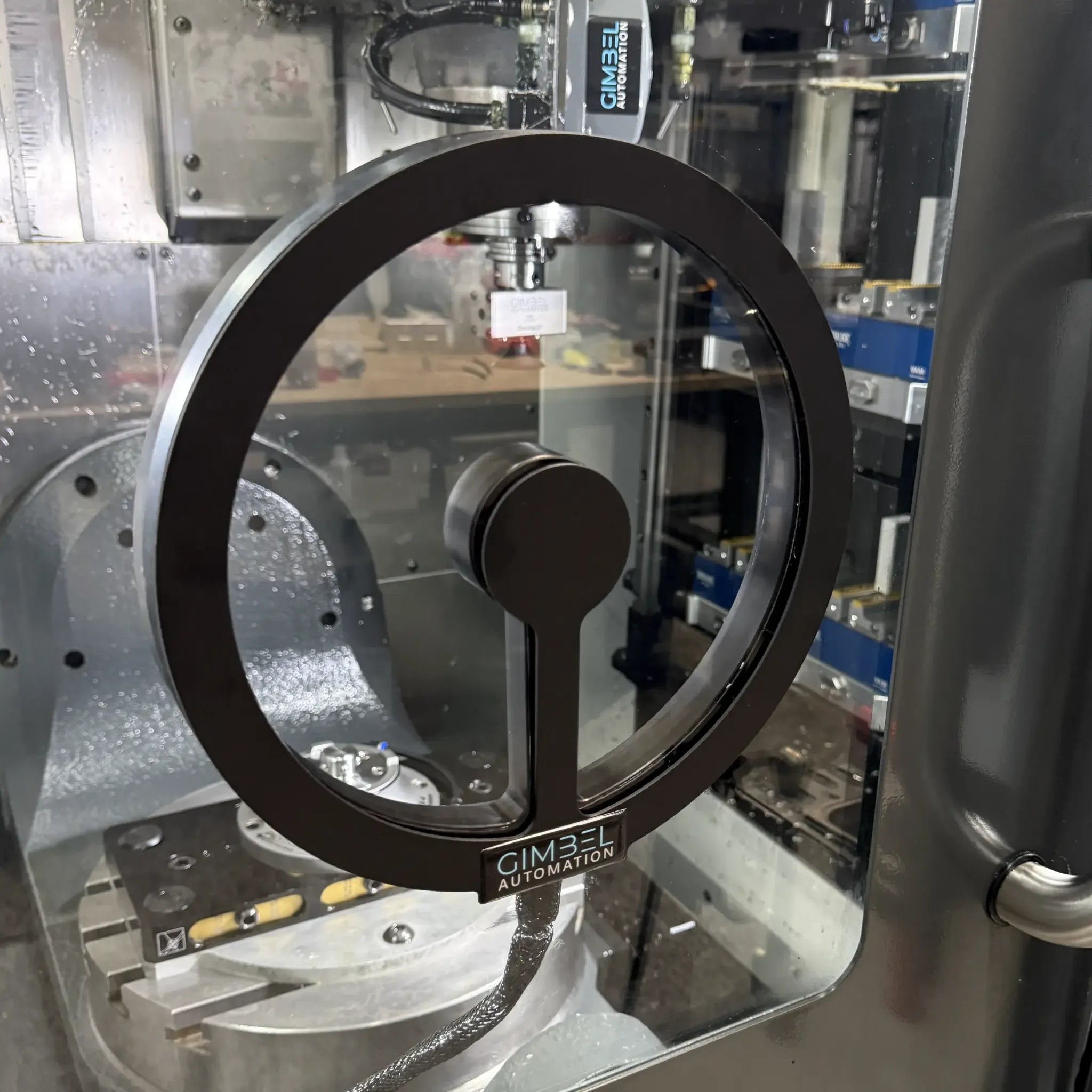

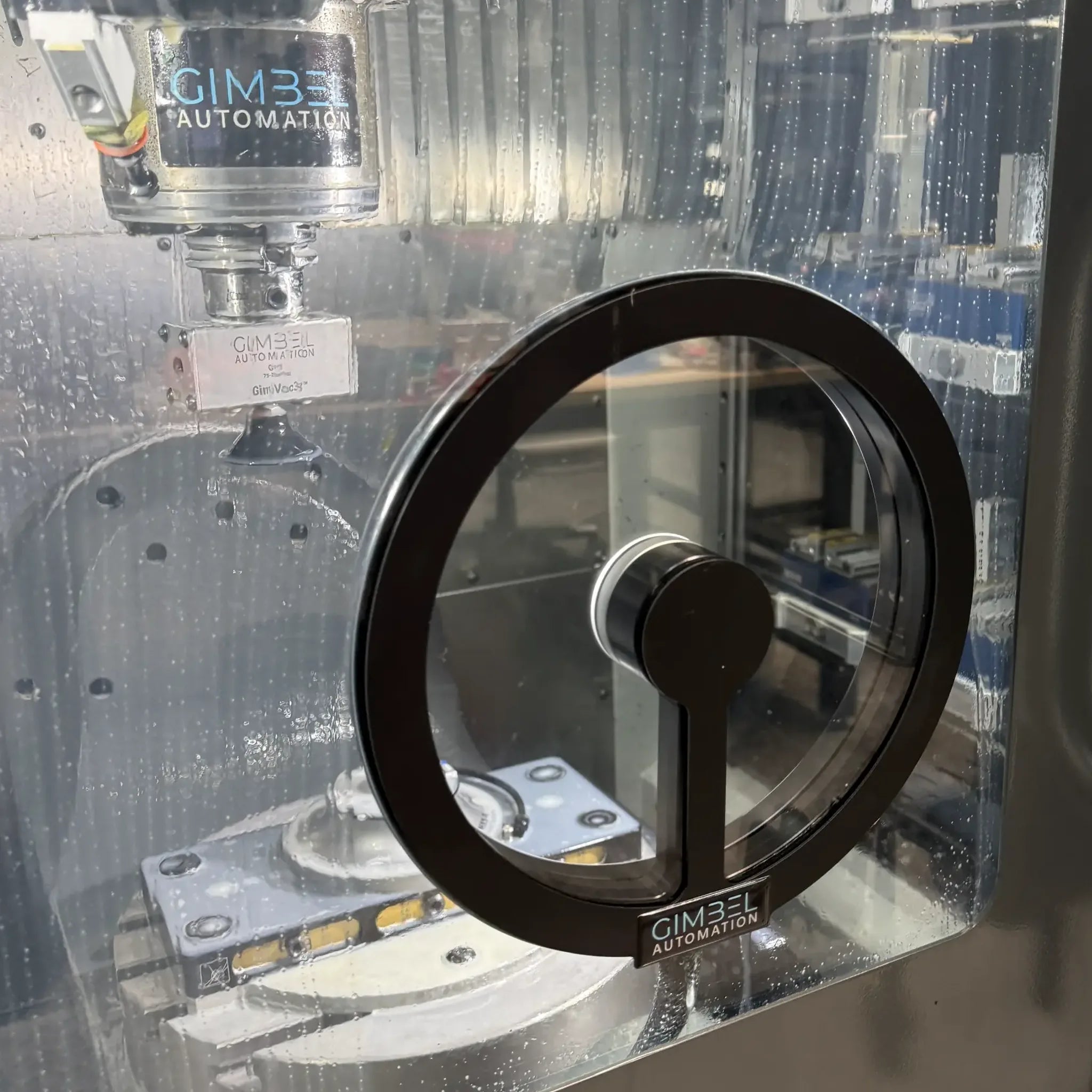

CoolantClear installed on a CNC machine door
$2,379.00$1,579.00
Save $800 at intro pricing
In production, order today to ship by Aug 28
  • Retrofits to the machines you already own
  • Direct-drive, 2,500 RPM, no air required

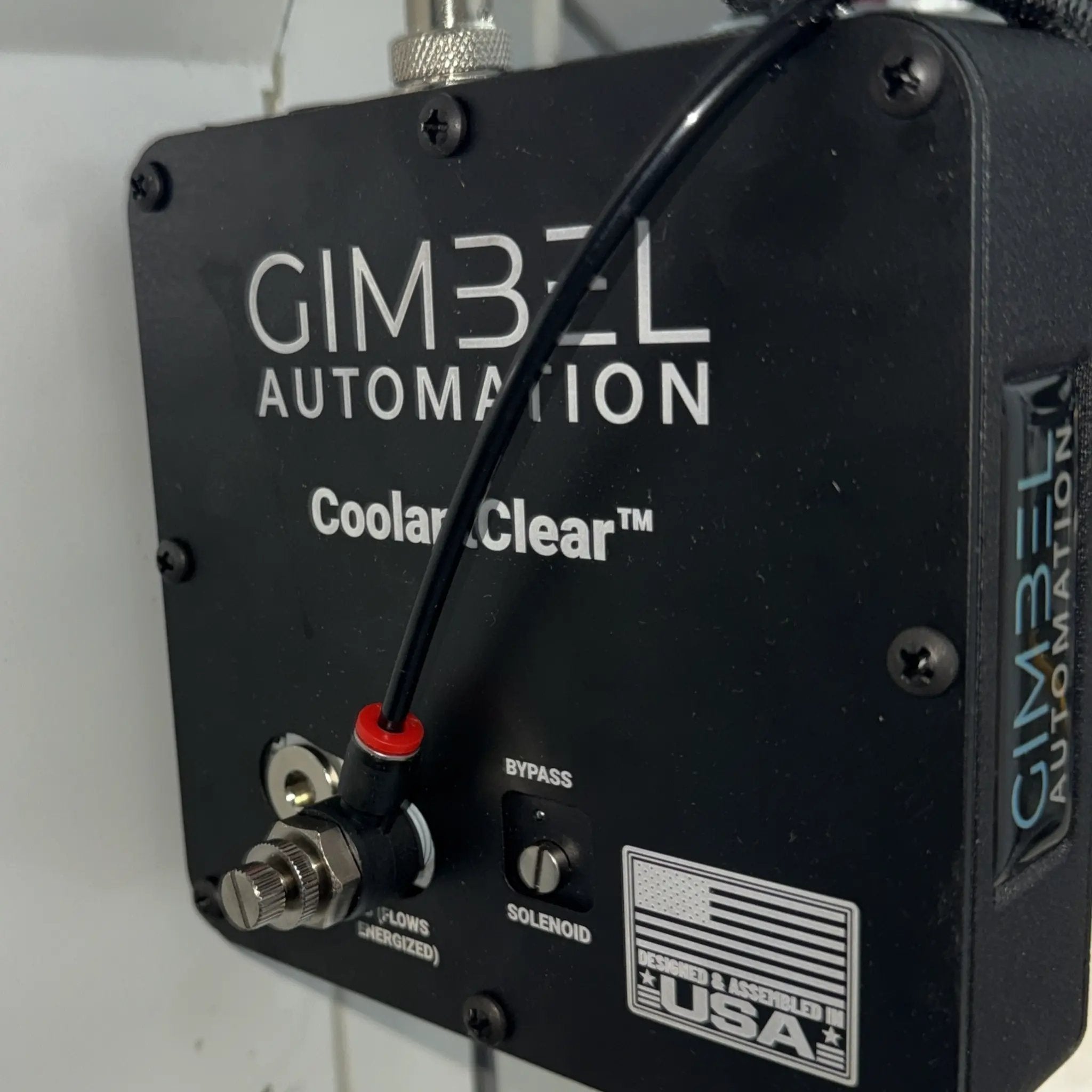

  • Runs from included control box or CNC I/O
  • Field-cleanable panel, no service call
Add CoolantClear™ to Cart
RotoClear
Premium OEM installs, new machines
RotoClear rotary window
~$3,250 and up
OEM channel, quoted lead times
  • Excellent clearing performance
  • 2x the price for the same viewing tech
  • Limited retrofit fit, bracket / OEM mount
  • Requires CNC / OEM integration to control
Sold through machine builders
Visiport
Light-duty machining

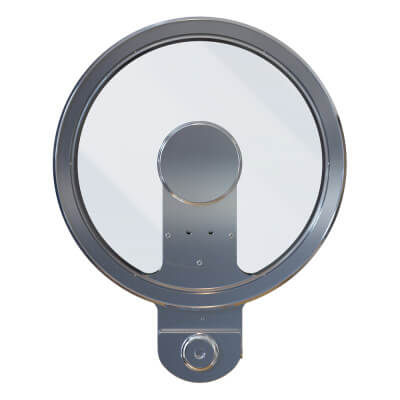

Visiport spin window
No longer sold
Discontinued, no new units
  • Retrofit friendly while it lasted
  • Struggles with heavy coolant
  • Manual or basic control only
  • No supply, no support path
Replacement buyers: see CoolantClear
Same core technology, three very different buys. All three use rotary centrifugal clearing for a clear view during cutting. The difference is price, fit, and whether you can actually get one.
Where They Differ
  CoolantClear™ RotoClear Visiport
Retrofit to existing machines ✓ YesAdhesive + sealed plate ~ LimitedBracket / OEM mount ✓ YesIf you can find one
Compressed air required ✓ NoOptional purge ✓ No ~ Sometimes
Control Control box or CNC I/O CNC / OEM integration Manual or basic
Heavy coolant & chip shedding ✓ High ✓ High ~ Moderate
Window maintenance Field-cleanable panel Replaceable panel Replaceable panel

The short version: RotoClear performance, retrofit-anywhere install, at half the price, and you can order one today.

Technical Specs & Downloads

3D CAD Viewer

Email address for CAD Model

CoolantClear2™ Rotary CNC Viewing Port Window 3D CAD turntable view
Downloads
Technical Specs
Technical Specs
Drive Type Industrial Waterproof Brushless Motor (Direct-Drive)
Rated Power 100W
Rotation Speed 2,500 RPM
External Diameter 254mm || 10.0in
Viewable Diameter 213mm || 8.4in
Overall Depth 36mm || 1.4in
Window Height (Profile) 38mm || 1.5in
Weight 3.4kg || 7.5lbs
Power Supply Input 120V AC to 24V DC
Starting Current / Rated Current 5A / 3.5A
Installation Method 3M VHB Adhesive + Sealed Mounting Plate
