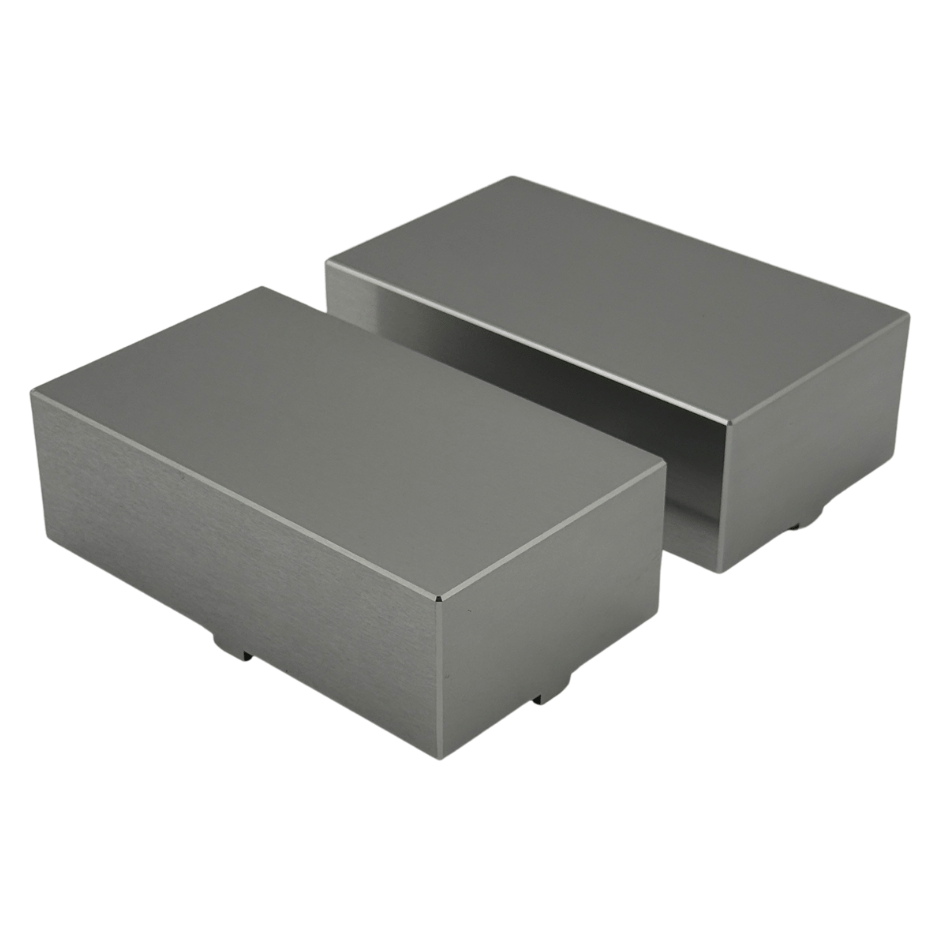

6" (150mm) AutoVise Lite™ Soft Jaws - Aluminum, Keyed for Lite Vises Only
Quantity:
In Stock
✓ In Stock
✓ Ships in 1-3 Business Days
✓ Ships in 10-14 Days
✓ US-Based Support
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Technical Specs & Downloads
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Technical Specs
| Technical Specs | |
|---|---|
| Compatible Vise | 150mm AutoVise Lite™ |
| Jaw Style | Keyed Soft Jaws |
| Material | Machinable 6061 Aluminum |
| Overall Width | 130.0mm || 5.12in |
| Overall Depth | 74.5mm || 2.93in |
| Overall Height | 44.5mm || 1.75in |
| Body Height | 41.0mm || 1.61in |
| Key Projection | 3.5mm || 0.14in |
| Mounting Screw Pattern | 92.0 x 35.0mm || 3.62 x 1.38in (4 Holes, Center-to-Center) |
| Weight (Each Jaw) | Approx. 1.08kg || 2.39lbs |
| Weight (Pair) | Approx. 2.17kg || 4.78lbs |
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Description

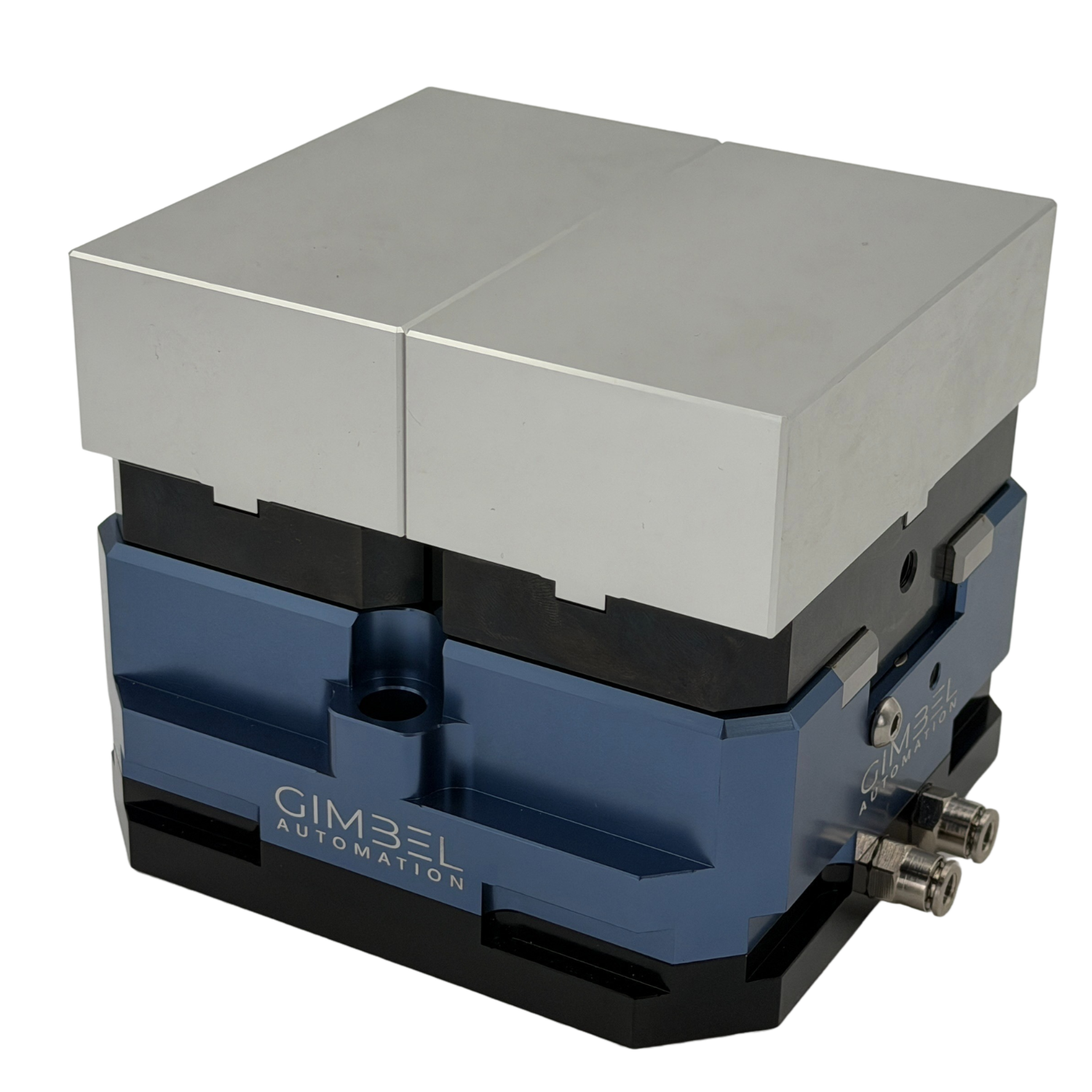

6" (150mm) Aluminum Keyed Soft Jaws for the Gimbel Automation 150mm AutoVise Lite -- the lightweight, self-centering pneumatic CNC air vise built for automated machine tending.
150mm AutoVise Lite Replacement Soft Jaws - Machinable Aluminum
- Designed for the AutoVise Lite: These 6" (150mm) keyed aluminum soft jaws are engineered exclusively for the AutoVise Lite platform. Not compatible with AutoVise Pro vises.
- Machinable 6061 Aluminum: Machine them to match your exact part geometry for precise, repeatable second-op workholding on your CNC mill.
- Keyed for Repeatability: The keyed jaw design ensures consistent jaw positioning every time you swap parts or reconfigure your setup.
- CNC Automation Ready: Ideal for robotic machine tending, unattended machining, and high-mix second-operation workflows on vertical mills and 5-axis machines.
- Convenient Availability: ✓ In Stock ✓ Ships from Los Angeles ✓ Automate Your Machine Today!
