IntraLoad™ CNC Pallet Changer & In-Machine CNC Pallet System

A CNC Pallet Changer That Lives Inside Your Machine

IntraLoad™ is a CNC pallet changer that works inside your 5-axis mill. The pallets, the storage shelves and the zero-point receiver all sit within the machine enclosure. Your machine's own axes move each pallet into place. The result is a complete CNC pallet system with no robot, no external pallet pool and no added floor space. Pricing starts at $49,000.

IntraLoad™ fits Haas UMC and DN Solutions DVF 5-axis machines. Depending on the machine and pallet size, it holds 9 to 24 pallets.

The IntraLoad™ CNC Pallet Changer
Video

Automatic CNC Pallet Loading Without a Robot Cell

Most pallet automation sits next to the machine. A robot cell or pallet pool needs its own floor space, its own guarding and its own integration project. On a 5-axis mill, that package often costs close to what the base machine cost.

IntraLoad™ takes a shorter path. It turns the machine you already own into the pallet loader. Your enclosure is already guarded and interlocked, so the pallets stay in there too. That is the whole idea, and it is why the price starts where it does.

Key Features

  • Store 9 to 24 pallets inside the enclosure
  • Run pallet automation with zero added footprint
  • Skip the robot, the cell and the external pallet stand
  • Clamp every pallet on a 15,000 lb pull-force zero-point system
  • Start from $49,000
Book A DEMO See CNC automation in action
IntraLoad™ Pallet Automation for CNC

How the IntraLoad™ CNC Pallet Loader Works

A pallet change on IntraLoad™ uses the same motion your machine already makes every day. Here is the sequence:

  1. Load fixtured pallets onto the IntraShelf™ racks inside the enclosure.
  2. Call the next pallet from your part program.
  3. Deploy the IntraActuator™, which drops down from the spindle head on air.
  4. Pick the pallet: the machine's axes carry the actuator to the shelf, and its gripper locks onto the pallet cleats.
  5. Clamp the pallet on the Max-4 zero-point receiver. The actuator tucks away and cutting starts.
  6. Return the finished pallet to its shelf slot, then load the next one.

The actuator stows itself when it is not working. Your 5-axis clearances stay the same as before the install.

CNC Pallet Changer Specifications and Compatible Machines

IntraLoad™ is built for moving-head 5-axis mills, where the spindle head can reach both the table and the inside walls of the enclosure. That reach is what makes in-machine pallet loading possible.

IntraLoad™ Specifications

Specification IntraLoad™
Pallet Capacity & Size
UMC-500 Up to 9 (6" × 6" pallets with VA56 LiteVises)
UMC-750 Gen 1/2 Up to 10
UMC-750 Gen 3 Up to 16
Larger configurations Up to 24, depending on machine and pallet size
Typical pallet size 6" × 6"
Load & Precision
Rated load per pallet 50 lb
Cycle-tested load 75 lb
Zero-point system Pierson Max-4: 15,000 lb pull force, 0.0002" repeatability
System & Installation
Actuation Pneumatic, with optional interlock and position sensors
Mounting Side or bottom of the spindle head
Shelf chip protection Internal auto-door, moving GuardPallet™ or directed coolant washdown
Manual setups Optional 96 mm pull-stud sub-plate kit
Pricing
Starting price From$49,000

Pallet count follows workholding size. A larger vise takes a larger shelf slot, so you trade pallet count for part envelope. We size that with you before you order.

What's in the IntraLoad™ CNC Pallet System

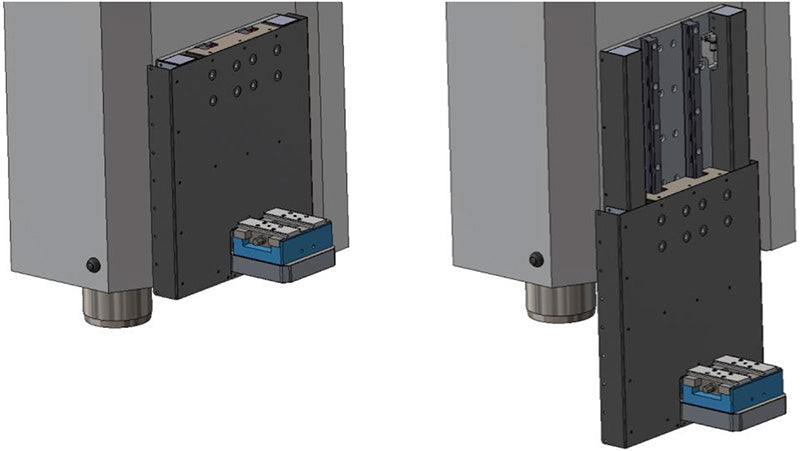

Deployable IntraLoad™ Actuator

The IntraActuator™ bolts to the side or bottom of the spindle head. When a pallet change starts, it deploys downward on air to clear the pallet. When the change is done, it tucks back up and out of the way.

Nothing about your 5-axis machining envelope changes. The system is pneumatic, with optional interlock and position sensors for shops that want confirmation at every step.

IntraLoad™ Actuator

IntraLoad™ Actuator

gimbel_automation Pallets + 5th AxisCleats

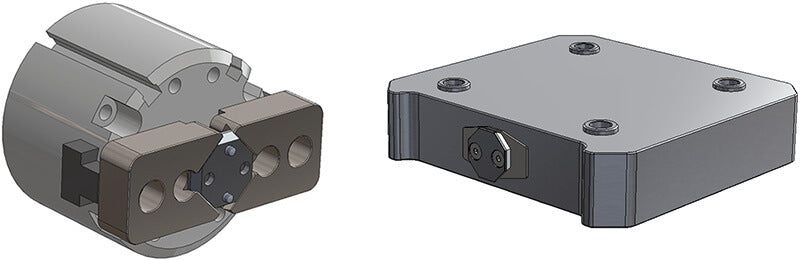

A pallet changer is only as reliable as its grip. We pair 5th Axis low-profile cleats with our own compact high-force gripper. The system is rated to 50 lb per pallet and cycle-tested with 75 lb pallets.

That margin matters on long unattended runs. A pallet that slips at 2 a.m. costs more than the pallet.

*Gimbel is an official 5th Axis OEM distributor.

Pallet Gripping System

Pallet Gripping System

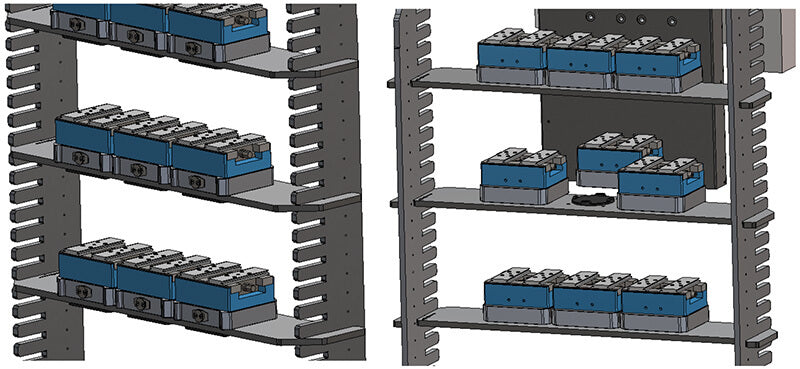

IntraShelf™ Shelving System

Pallet storage is usually the expensive part of a CNC pallet system. External shelving needs its own frame, guarding and safety interlocks. IntraShelf™ puts the pallet pool inside the enclosure, which is already within reach of the spindle head and already interlocked.

The honest question is chips. Shelves inside a cutting zone will see them. Here are the three ways we handle it, from most to least effective:

  1. Close an internal auto-door over the shelves
  2. Cover them with a moving GuardPallet™
  3. Rinse them with a directed coolant washdown

Most shops cutting aluminum or steel at volume should plan on the auto-door.

IntraShelf™ System

IntraShelf™ System

IntraLoad™ Customer Testimonials

Fast Implementation. Faster ROI.

IntraLoad™  Customer Testimonials

CNC Automation That Works

Motion Raceworks + Gimbel IntraLoad

CNC Automation That Works

Discover How Gimbel's CNC Machine Tending Automation Can Transform Your Production

Zero-Point CNC Pallet System and Pallet Fixtures

A CNC pallet system is the pallet and receiver pair that lets a fixtured part leave the machine and come back to the exact same position. The receiver bolts to the table. The pallet carries the vise or fixture. A zero-point clamp pulls the two together, so there is no re-indicating after a swap.

On a CNC pallet changer, that clamp does all the work every single cycle. We built IntraLoad™ around it.

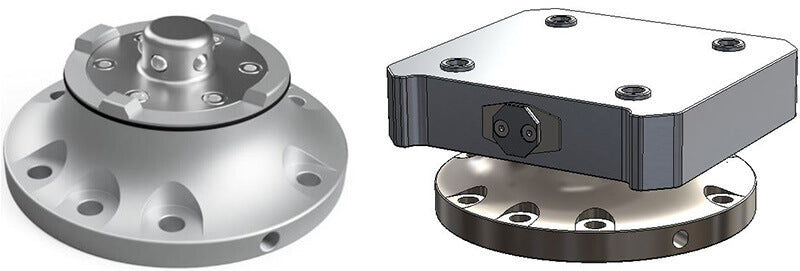

Pierson Workholding Max-4 on IntraLoad™

At the heart of any good form of CNC Pallet Automation is an excellent zero-point system. After testing nine different systems, nothing could come close to the Max-4 Pallet System.

Featuring 15,000lbs of pull force and the best-in-class repeatability of 0.0002", we combined the Max-4 System with our special Gimbel Pallets to create an incredibly reliable and flexible automation system.

*Gimbel is an official Pierson distributor for the Max-4 System

Max-4 Zero Point System

Max-4 Zero Point System

5th AXIS LiteVise on IntraLoad™

To bring the IntraLoad System to life, we partnered with 5th Axis and Orange Vise to deliver you world-class workholding solutions.

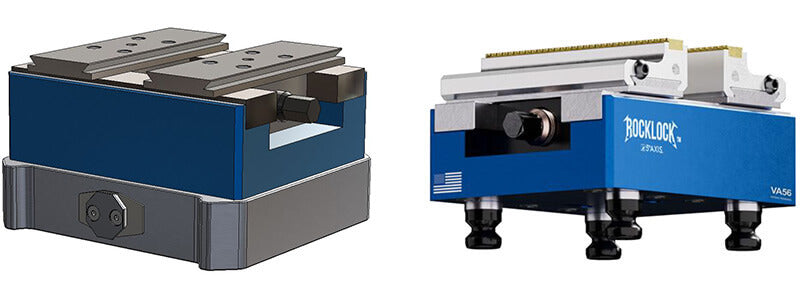

The 5thAxis LiteVise is an excellent solution for pallet-loading given its great holding power and lightweight aluminum body with inset steel rails.

*Gimbel is an Official 5thAxis Distributor

Workholding from 5thAxis*

Workholding from 5thAxis

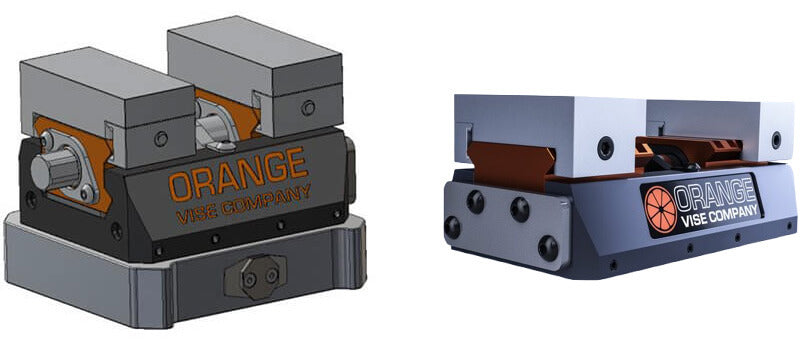

Orange Vise Company Helios on IntraLoad™

Another excellent option for workholding is the Helios System from Orange Vises. We recommend this system when using Soft Jaws in your IntraLoad machining operations.

The Helios is also an aluminum body with inserted rails. This system features quick-change soft jaws that make swapping between different vise configurations extremely fast.

*Gimbel is an official Orange Vise Distributor

Workholding from Orange Vise*

Workholding from Orange Vise

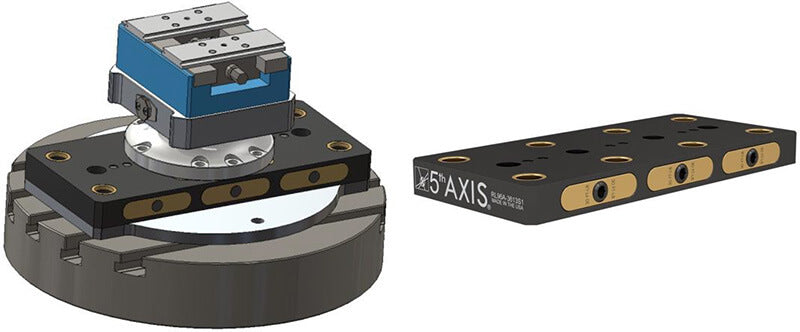

Occasional Manual Setups?

No matter how automated you are, you sometimes will still need manual setups. We have you covered with an optional 5thAxis Subplate designed to allow your Pierson Max4 for the IntraLoad to come right off.

We offer the entire system as a kit, including the Spacer, Rotary Union, 5thAxis ROCKLOCK base, and the Max4 Pallet System.

*Gimbel is an Official 5thAxis OEM Distributor

Optional 96mm Pullstud Sub-Plate

Optional 96mm Pullstud Sub-Plate

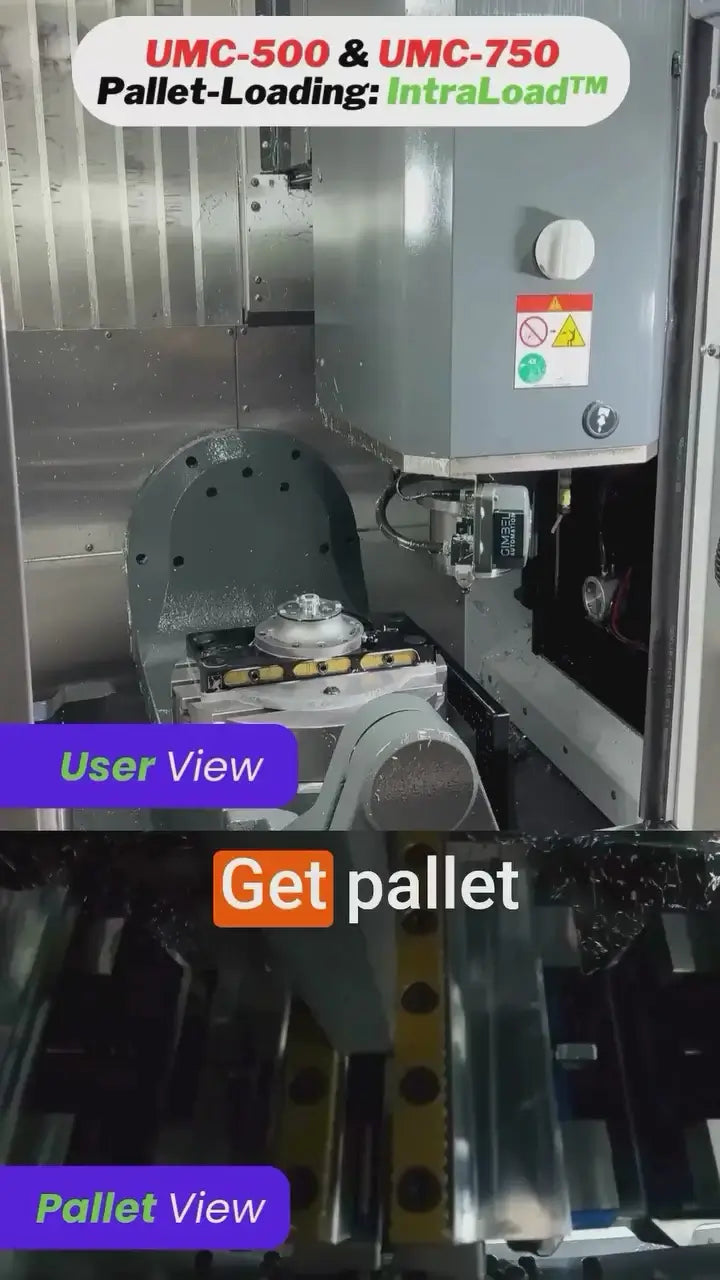

UMC-500 & UMC-750 Pallet-Loading: IntraLoad™

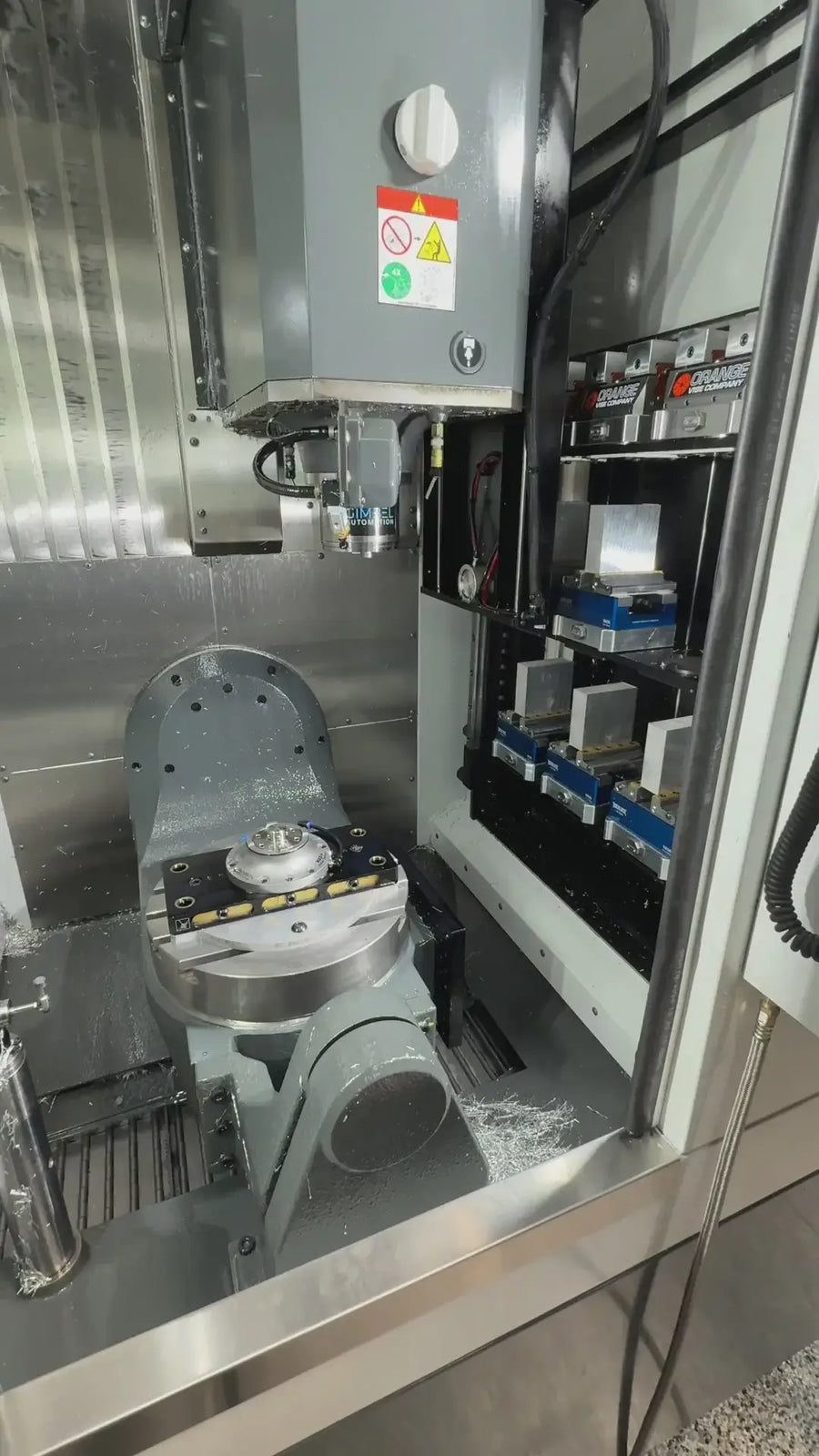

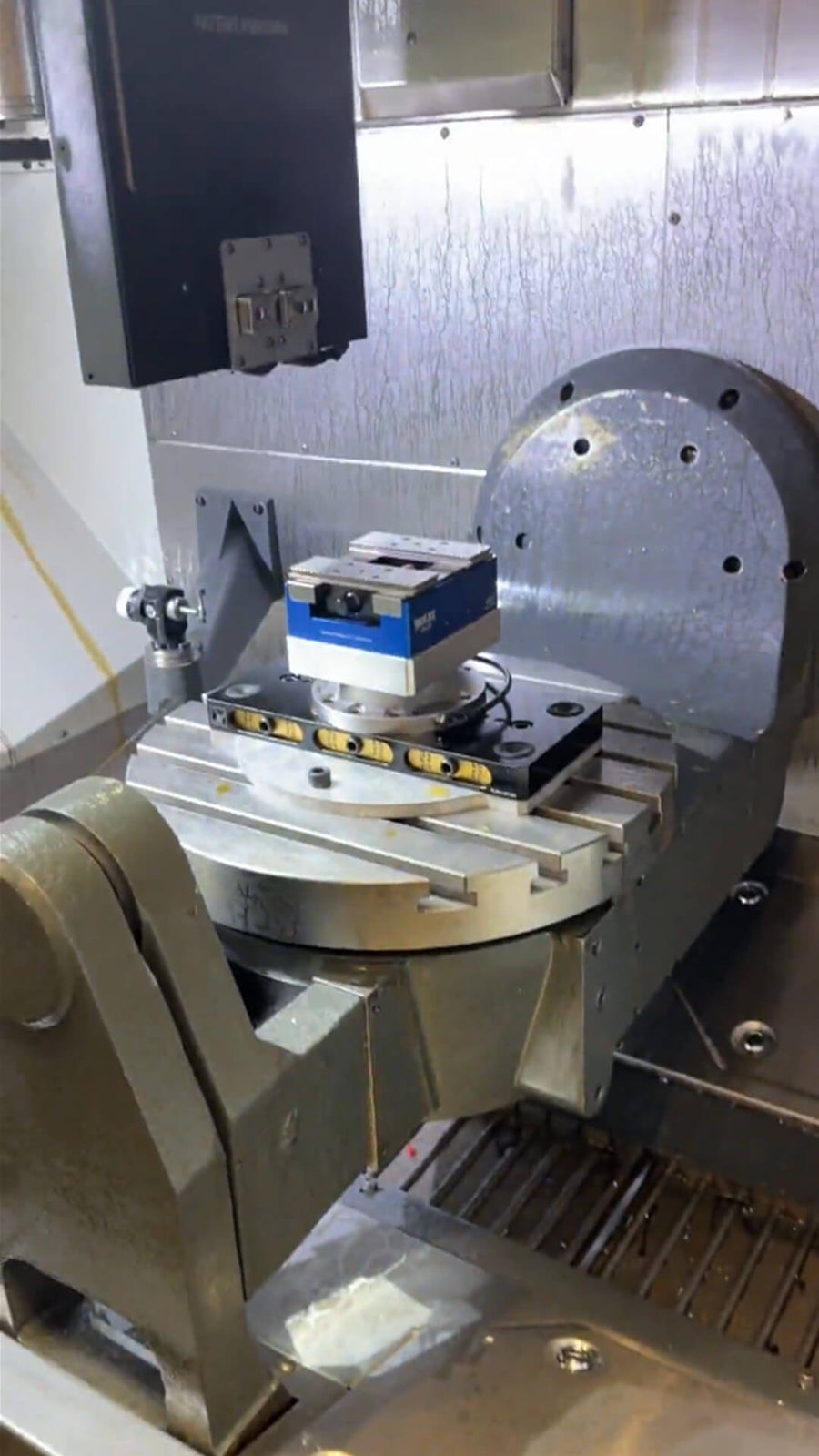

The IntraLoad™ CNC Pallet-Loading System
The IntraLoad™ CNC Pallet-Loading System

CNC Pallet Changer Price

IntraLoad™ starts at $49,000. Your final price depends on five things:

  1. Machine model and generation
  2. Pallet count you want on the shelves
  3. Workholding on each pallet: vise type and count
  4. Chip protection for the shelves
  5. Installation: on-site commissioning or self-install with remote support

Most of the cost in a conventional CNC pallet system is hardware that lives outside the machine: the base, the guarding, the transfer arm or robot. IntraLoad™ does not need any of it. To see what the payback looks like on your own numbers, run them through our CNC automation ROI calculator.

Installation, Commissioning and Training

We ship IntraLoad™ to shops nationwide with manuals and remote programming support. For shops in California and the Western US, our team handles on-site installation, commissioning and operator training through our turnkey automation program.

Day-to-day care is light. The system rides on your machine's own kinematics, so a well-maintained machine keeps IntraLoad™ healthy. Routine upkeep is wiping down the auto-door and greasing the linear rails.

Before You Order: Quick Fit Checklist

  1. Confirm your machine model and generation
  2. Measure your largest part and fixture against a 6" pallet
  3. Ask us whether your control needs extra I/O for the pallet functions
  4. Plan chip control based on the material you cut most

CNC Pallet Changer FAQs

A CNC pallet changer swaps fixtured pallets in and out of a machining center, so parts get loaded while the machine cuts or before an unattended run. IntraLoad™ does this inside a 5-axis mill, using the machine's own axes. For a deeper look at the different types, read our automatic pallet changer guide.

A pallet is a precision plate that carries the vise or fixture holding your part. It locates on a zero-point receiver mounted to the machine table. Because the pallet always seats in the same position, you can remove it, reload it and put it back without re-indicating.

Fixtured pallets sit on IntraShelf™ racks inside the enclosure. When your program calls a change, the IntraActuator™ drops from the spindle head, picks the pallet and places it on the Max-4 zero-point receiver. After machining, the pallet returns to its slot and the next one loads.

No. IntraLoad™ uses your machine's existing axes as the loader and stores pallets inside the enclosure. There is no robot, no external pallet stand and no extra guarding. The machine's footprint stays exactly what it is today.

IntraLoad™ fits the Haas UMC-500, UMC-750 (Gen 1, 2 and 3), UMC-1000 and UMC-1250, plus DN Solutions DVF 5-axis machines. It needs a moving-head 5-axis machine, so it does not work on 3-axis VMCs.

It depends on the machine and pallet size. With 6" × 6" pallets and VA56 LiteVises, a UMC-500 holds up to 9 pallets. A Gen 1 or Gen 2 UMC-750 holds 10, and a Gen 3 UMC-750 holds up to 16. Larger machines and configurations reach up to 24 pallets. Larger vises reduce the count.

Each pallet is rated to 50 lb, including the workholding and the part. Every system is cycle-tested with 75 lb pallets before it ships.

es. IntraLoad™ is a retrofit. It bolts to the spindle head of a compatible machine you already own, and the shelves mount inside the enclosure. You do not need to buy a new pallet-ready machine.

There are three options. An internal auto-door works best and is what we recommend for most production work. A moving GuardPallet™ is the next step down. A directed coolant washdown works for lighter chip loads.

Yes. IntraLoad™ relies on your machine's own kinematics, so there is very little extra to wear out. Routine maintenance is wiping down the auto-door and greasing the linear rails.

Yes. An optional 96 mm pull-stud sub-plate lets you take the Max-4 off the table and run a standard zero-point setup for one-off jobs. We sell it as a kit with the spacer, rotary union and RockLock base.

You need a compatible machine and room on your control for the pallet functions. Send us your machine model and we will confirm fit before you order.

Yes. Our team installs, commissions and trains on-site in California and the Western US. Every system ships with manuals and remote programming support.
