Machinist Vise vs. CNC Vise: How to Choose the Right Milling Vise

A machinist vise works best on manual mills for prototype and one-off work. A CNC vise fits machining centers running production. If your shop is automating with a cobot or gripper, a pneumatic self-centering vise handles clamping without an operator. Your machine type, production volume, and automation plans determine which one you need.

That choice shapes everything downstream: setup time per part, repeatability across a run, and whether your milling machine vise can keep pace as your CNC workholding needs grow. This guide covers the three main categories of mill vise, what each does best, and how to match one to your shop.

We build pneumatic CNC Vises. But we will start with what most shops already own and explain when each type earns its place on your table.

What Is a Machinist Vise?

Cast iron body. Flanged base. A screw mechanism that moves one jaw toward a fixed jaw. That is the machinist vise at its core, and it has been the standard workholding tool on Bridgeport-style machines for decades.

The flange gives it a wide mounting footprint. You bolt it to the mill table through the flange slots, and the extra surface area keeps the vise stable under heavy cuts. Most quality machinist vises use a lock-down mechanism that forces the movable jaw downward as you tighten the screw. This prevents the jaw from lifting your part off the parallels.

Jaw widths range from 4 inches to 10 inches. The 6-inch size handles the widest variety of work and remains the most common choice. You will find machinist vises with swivel bases and fixed bases. A swivel lets you angle the vise for compound cuts, while a fixed base gives you more rigidity and less to re-indicate.

Best fit: manual mills, job shops doing one-off work, prototyping, and training environments. If you tighten a vise handle by hand and check your setup with a dial indicator, a good machinist vise is the right tool.

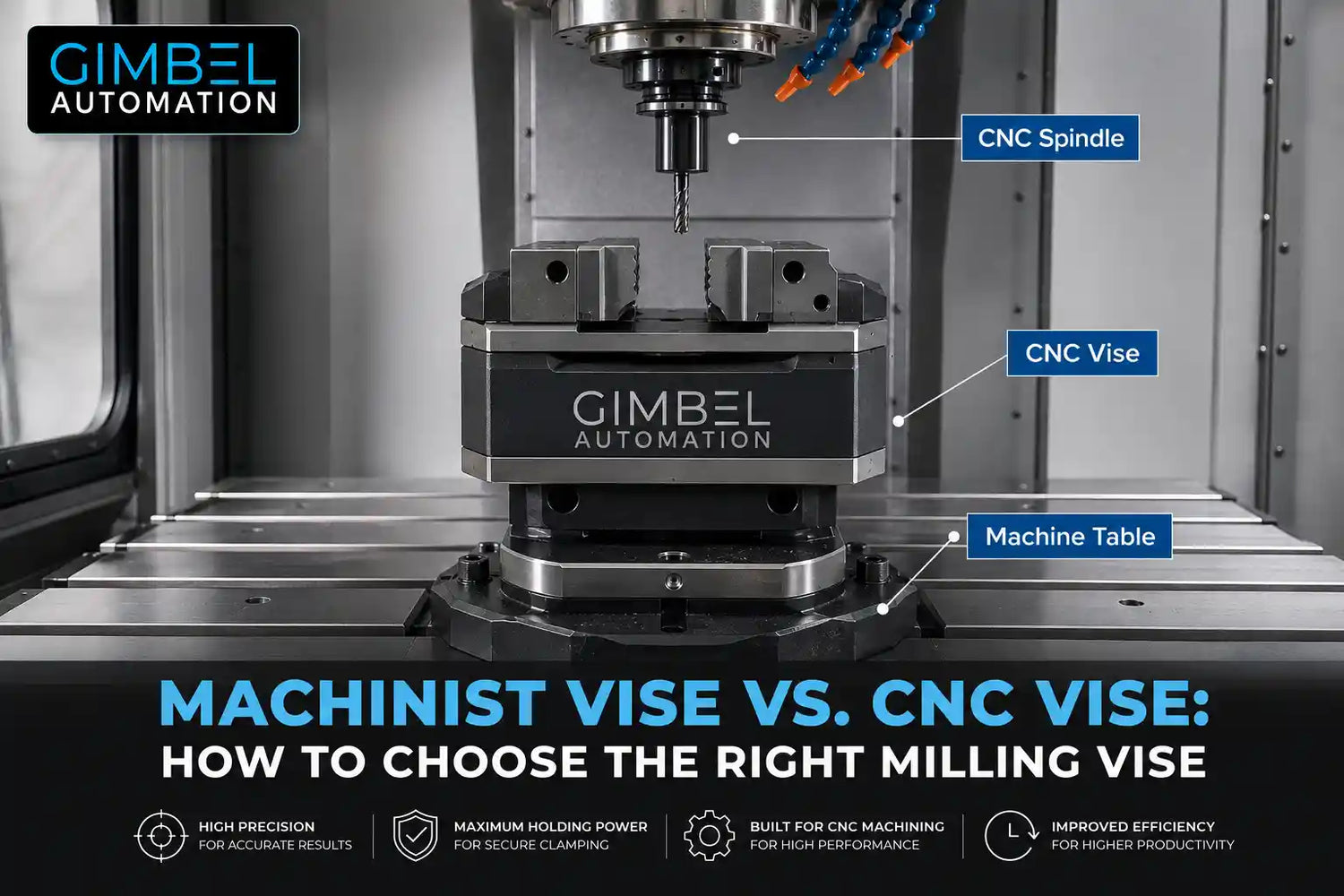

What Is a CNC Vise?

Your VMC table has 24 inches of Y-travel and you need three vises side by side. A traditional machinist vise, with its wide cast flange, will not fit. That is the problem a CNC machine vise solves.

It drops the flange entirely. The body is compact and rectangular, precision-ground on multiple sides: top, bottom, and both ends. You can mount it flat, on its side, or standing up. That flexibility lets you fit more vises on one table and orient each one to match your fixture layout.

CNC vises still use a screw and lock-down jaw mechanism. The difference is tighter tolerances. A well-made CNC vise holds jaw parallelism under 0.0005 inches and delivers repeatable clamping from part to part. That consistency matters when you run 50 or 500 of the same piece.

Most CNC vises accept quick-change jaw systems. You swap between hard jaws, soft jaws (typically machined aluminum), and dovetail jaws without removing the vise from the table. A jaw change that used to cost 15 minutes now takes two.

Best fit: CNC machining centers, production runs, multi-vise setups, and any application where you need consistent clamping across a batch.

Machinist Vise vs. CNC Vise: Key Differences

Both hold parts. Both use a screw to clamp. The differences show up in size, precision, and how they fit into a production workflow.

If your shop runs manual machines and does custom or low-volume jobs, a machinist vise with a fixed base and good lock-down will serve you well for years.

If you run CNC, the math shifts. Setup time per part is money. Jaw parallelism affects scrap rate. Fitting multiple vises on one table means more parts per cycle. A CNC vise pays for itself in setup savings within the first few production runs.

Other Milling Vise Types Worth Knowing

Not every job fits a standard machinist or CNC vise. A few specialty types fill specific gaps.

Toolmaker vise. Small, accurate, and portable. Uses a latch mechanism instead of a screw. You can move it between machines without disturbing the part. Good for inspection setups and surface grinding.

Angle vise. Tilts up to 90 degrees. Lets you mill angled surfaces without re-indicating the workpiece. Useful for one-off jobs that need compound angles.

Cross-slide vise. Moves in two axes on its own base. Mostly used on drill presses for precise hole positioning. Not a production tool, but handy on smaller machines.

Double-station vise. Holds two parts at once with a single screw. A simple way to double your parts per cycle on a VMC without adding a second vise.

Hydraulic vise. Uses hydraulic pressure for consistent, high-force clamping. Common on horizontal machining centers and production cells running large volumes of the same part.

Each fills a role. But for most milling work, the real decision comes down to machinist vise, CNC vise, or the next category: pneumatic.

What Is a Pneumatic Self-Centering Vise?

What happens when your shop adds a cobot to load your CNC? The robot can open the door, pick a part, and place it in the vise. But it cannot turn a vise handle.

A pneumatic self-centering vise solves that problem. It uses shop air (operating range of 40 to 175 PSI) to clamp and unclamp through M-code commands in your CNC program. No operator input. No handle. The machine controls the vise directly.

Both jaws move toward the centerline at the same time. You place a part roughly in position, trigger the clamp command, and the jaws close equally from both sides. The part centers itself on the spindle axis. Repeatability on a quality pneumatic CNC vise runs under 0.001 inches, cycle after cycle, with no variation from operator fatigue or technique.

The safety question most shop owners ask first: what if you lose air pressure mid-cut? Quality pneumatic vises use a spring-backup design. If the air supply drops to zero, the springs retain nearly 1,000 lbs of clamping force on their own. The part stays clamped. The cut finishes.

This is the vise category that makes lights-out machining possible. Your CNC runs. The cobot loads and unloads. The pneumatic vises for CNC clamp on command. You collect finished parts in the morning.

Here are the specs to compare when evaluating a pneumatic self-centering vise:

If your shop is not yet automating, a CNC vise is the right buy today. But if you are running a cobot, planning for lights-out shifts, or tired of inconsistent operator clamping, self-centering CNC air vises are the next logical step.

How to Choose the Right Milling Vise for Your Shop

Four questions get you to the right vise category in under a minute.

1. Manual mill or CNC? Manual mill means machinist vise. CNC machining center means CNC vise or pneumatic vise. Do not put a flanged machinist vise on a VMC for production work. You give up table space and setup speed for no benefit.

2. One part at a time, or multi-vise production? Running one vise and one part per cycle, a standard CNC vise works. If you want two, three, or four vises on a table, choose compact CNC vises or a 75mm pneumatic CNC vise designed for tight spacing.

3. Operator-loaded or automation-ready? If an operator loads every part by hand, a screw-driven CNC vise is fine. If you plan to add a cobot, robotic arm, or any form of automated part handling, you need air-actuated clamping. A manual vise handle is a dead end for automation.

4. How tight is your repeatability requirement? For general machining within 0.005 inches, any quality CNC vise works. For consistent sub-0.001 inch centering across long runs, a self-centering vise removes the positioning variation that comes from hand-clamping.

Quick-reference table:

Setting Up Your Milling Vise for Accuracy

A $1,000 vise bolted to a dirty table is less accurate than a $300 vise on a clean one.

Before you mount any vise, wipe the table and vise base with a clean rag. Run your fingers across the mounting surfaces. One chip trapped between the vise and table tilts your entire setup. On a 6-inch vise, a 0.001-inch chip under one corner creates a measurable taper across the jaws.

Tram the vise after mounting. Sweep a dial indicator along the fixed jaw face while traversing the X-axis. You want the jaw face parallel to X within 0.0005 inches. If it reads off, tap the vise body with a soft mallet and sweep again.

For shops running multiple vise setups, consider fixture plates with dowel pin locations. Drill and ream three pin holes in the plate, drop the vise onto the pins, and clamp it down. No tramming needed. This method saves 10 to 15 minutes per setup and makes vise removal repeatable.

Choose your jaw type based on the material you are cutting. Hard serrated jaws grip raw stock and castings. Soft aluminum jaws, machined in place, hold finished surfaces without marking them. Dovetail jaws grip thin or delicate parts at the edges.

Frequently Asked Questions

What is the difference between a machinist vise and a machine vise?

A machinist vise has a flanged cast-iron body and mounts to a workbench or manual mill table with bolts through the flange. A machine vise, or CNC vise, has a compact body with no flange. It is precision-ground on multiple sides and mounts to CNC machining center tables. Machine vises are built for tighter tolerances and faster setups in production environments.

Can I use a machinist vise on a CNC machine?

Yes, but it is not ideal for production. The flange takes up table space, and the wider body limits multi-vise setups. For one-off CNC jobs, a machinist vise works fine. For repeat production on a VMC, a dedicated CNC vise gives you better repeatability and more efficient use of your table.

What size milling vise do I need?

Match the jaw width to your typical part size. A 6-inch vise handles the widest range of work and is the standard for most shops. If you run small parts on a compact mill, a 4-inch vise saves table space. For large castings or plates, consider an 8-inch or wider.

How do I prevent jaw lift on a milling vise?

Buy a vise with a lock-down mechanism, also called pull-down. This is standard on quality CNC vises and many machinist vises. The mechanism uses an angled wedge or cam to pull the movable jaw downward as you tighten the screw. It keeps the part pressed flat against the parallels.

What is a self-centering vise, and when do I need one?

A self-centering vise moves both jaws toward the center at the same time, positioning the part on the spindle axis automatically. You need one if you require consistent centering under 0.001 inches across a production run, or if you are automating part loading with a cobot or robotic arm.

Are pneumatic vises worth the investment for a small shop?

A pneumatic vise costs more upfront than a manual CNC vise. The payback depends on your workflow. If you load parts all day on a single machine, the time saved on clamping and unclamping adds up fast. If you plan to add a cobot within the next year, buying pneumatic now avoids replacing your workholding twice.

Choosing Your Next Vise

Every milling setup starts at the vise. A machinist vise does honest work on a manual mill. A CNC vise earns its place in production. A pneumatic self-centering vise takes the operator's hands out of the loop entirely.

If your shop is moving toward automation and you want workholding that keeps pace, explore our CNC Machine vises. They are built for repeatable, automated production on Haas, Fanuc, Brother, Doosan, Hurco, and DMG Mori machines.
